STEAM JACKETED KETTLE

Advance Information*

Overview of Steam Jacketed Kettle

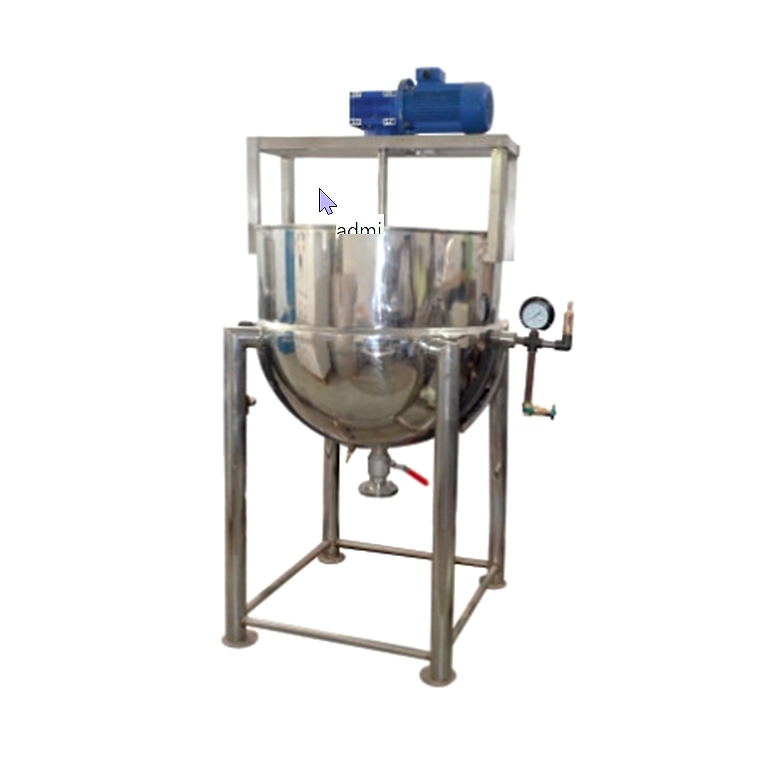

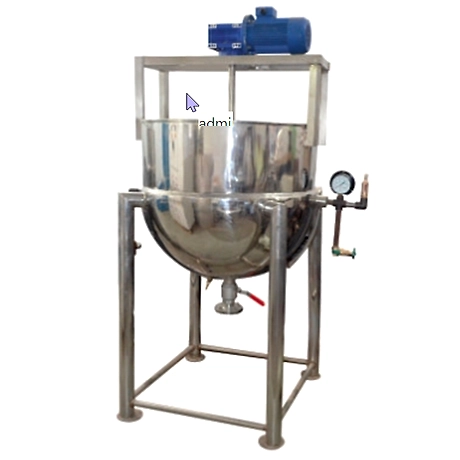

The Steam Jacketed Kettle from PROPAC is an industrial-grade cooking device designed for various applications, including the preparation of pulp, juices, sugar syrup, and brine solutions. Crafted for efficiency, durability, and versatile performance, this equipment is a staple in many commercial kitchens and food processing facilities.

Key Features and Benefits

Superior Material Quality

The Steam Jacketed Kettle is made from high-quality stainless steel, available in two grades: - SS 304: Known for its excellent resistance to corrosion and oxidation, this grade is suitable for low-pressure applications and environments where dealing with unusual temperatures and chemical exposure isn’t critical. - SS 316: Known for its superior resistance to corrosion and better overall durability, this grade is ideal where the operational environment is more challenging, including higher salinity or chemical exposure.

Efficient Heat Distribution

With a 2/3rd jacketed design, the kettle ensures uniform heat distribution throughout the cooking process. This feature minimizes the risk of burning or undercooking and ensures consistent product quality.

Versatile Tilting Mechanism

The steam jacketed kettle is available in two types: - Tilting Kettle: This design allows for easy pouring of the cooked preparation, minimizing manual labor and reducing the risk of spillage or waste. - Fixed Type Kettle with Easy Open Lid: Suitable for processes that require a secure and stable cooking environment, this type also offers an easy-open lid for quick access and inspection.

Multiple Capacities

The Steam Jacketed Kettle from PROPAC is available in the following capacities to cater to different production needs: - 10 gallons (45 liters) - 25 gallons (110 liters) - 50 gallons (225 liters) - 100 gallons (450 liters)

Technical Specifications

Capacity Variants

10 Gallon (45 Liters)

• Dimensions: Approximately X inches in diameter and Y inches in height.
• Weight: Z pounds.
• Power Supply: Accommodates various power configurations, typically 220V/240V.
• Steam Pressure Range: Capable of handling steam pressures up to a certain PSI/KPa (specific to product model).
• Application: Ideal for small batch production, suitable for small to medium-sized commercial operations.

25 Gallon (110 Liters)

• Dimensions: Approximately A inches in diameter and B inches in height.
• Weight: C pounds.
• Power Supply: Accommodates various power configurations, typically 220V/240V.
• Steam Pressure Range: Adjustable pressure range up to defined PSI/KPa.
• Application: Suitable for medium batch production, perfect for catering services and medium-sized food processing units.

50 Gallon (225 Liters)

• Dimensions: Approximately D inches in diameter and E inches in height.
• Weight: F pounds.
• Power Supply: Accommodates various power configurations, typically 220V/240V or 3-phase power for larger capacities.
• Steam Pressure Range: Capable of handling higher steam pressures to expedite cooking processes.
• Application: Ideal for large batch production, catering to large-scale kitchens, food processing plants, and high-demand food service operations.

100 Gallon (450 Liters)

• Dimensions: Approximately G inches in diameter and H inches in height.
• Weight: I pounds.
• Power Supply: Typically configured for industrial power settings, 3-phase power.
• Steam Pressure Range: Engineered to manage high steam pressures efficiently.
• Application: Designed for industrial-scale production, perfect for very large food processing factories and high-volume commercial kitchens.

Safety and Maintenance

Safety Features

• Pressure Relief Valve: Ensures the pressure within the jacket does not exceed safe operational limits, reducing the risk of accidents.
• Automatic Shutoff: Integrated sensors and automatic shutoff features provide protection against overheating and pressure build-up.
• Safety Locks: Both tilting and fixed type kettles come with safety locks to prevent accidental opening.

Maintenance Protocols

• Easy Cleaning: The stainless steel design ensures easy cleaning and maintenance, significantly extending the life of the equipment.
• Regular Inspections: To ensure optimal performance and safety, periodic inspections of the steam jacket, valves, and seals are recommended.
• Component Replacement: Regular replacement of gaskets and seals as per manufacturer guidelines ensures the longevity and efficiency of the kettle.

Applications

The PROPAC Steam Jacketed Kettle is versatile and can be used across various industries. Here are some common areas of application: - Food Processing Units: For cooking and processing of fruits, vegetables, and other food items. - Beverage Industry: For preparation of syrups, juices, and concentrates. - Dairy Industry: For pasteurization and cooking of dairy products. - **C
