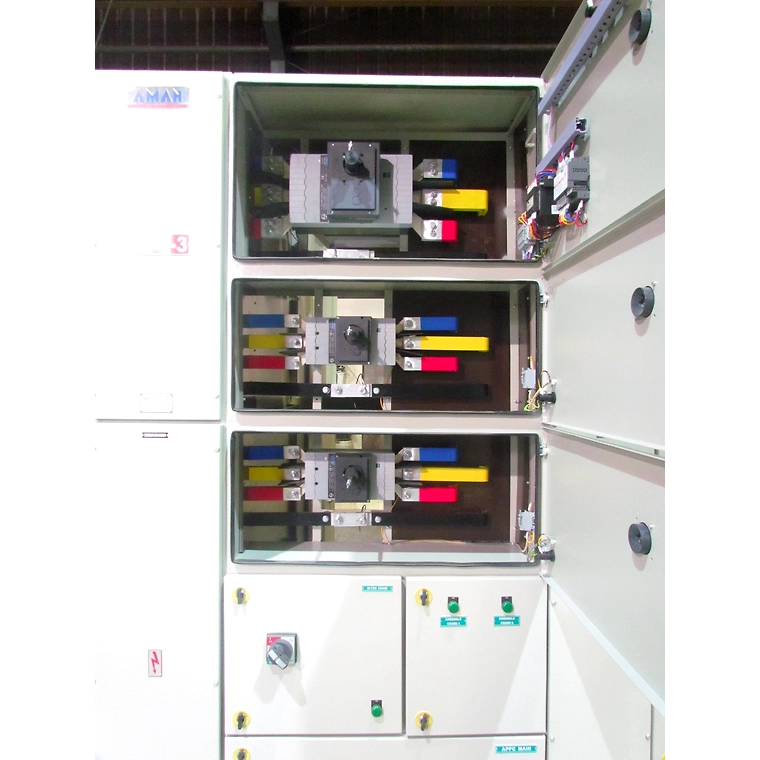

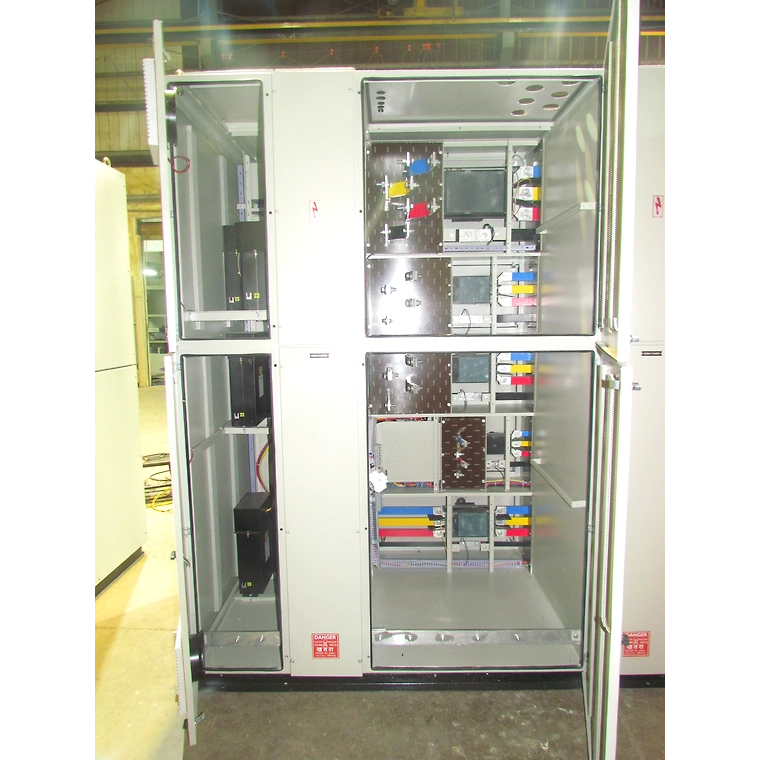

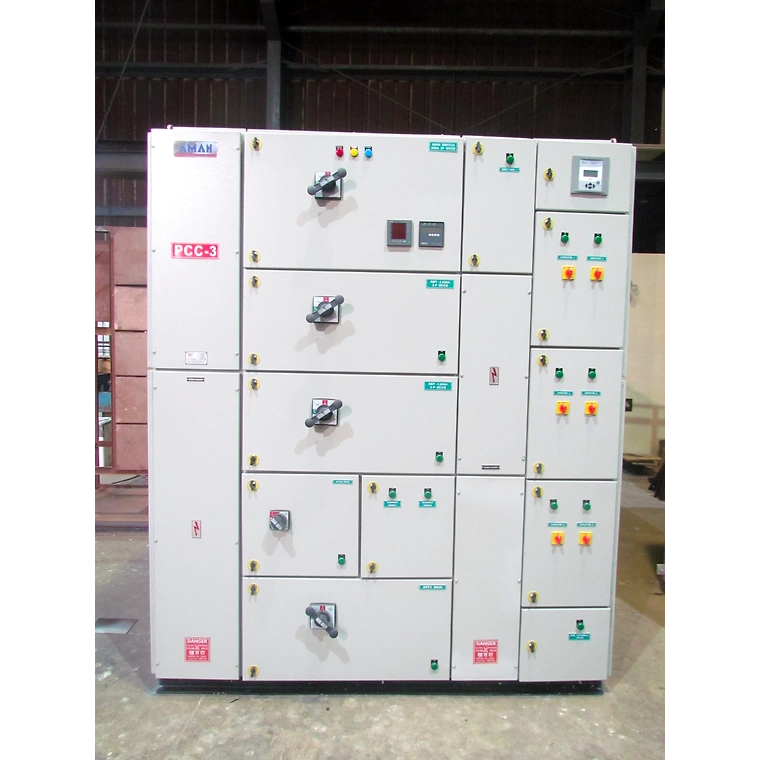

Sub Panel with 6 Step APFC

Brand: AMAN

You Save:

Inclusive of all taxes

  • Product not available

Please select seller to proceed:

Send message to seller
Send Inquiry
This is a Sub Panel with 6 Step APFC,We manufacture LT Distribution Panel Board with Auto Power Factor Correction Panel up to 6300 Amp., also we are already done 18 nos. of L&T make sandwich BBT (Bus Trunking Sysytem) Project up to 5000 Amp. with Copper and Aluminium Bus. In addition we also manufacture 3 Ph and 1 Ph MCB Distribution Board, Motor Control Centre, PLC Control Panel, Desk Type Panel, AMF Panel Board for DG Sets, Motor Test Bench (Routine Test & Type Test) & all other Customize Panel Board. In our panel boards we use components of valuable company’s viz. L&T., SCHNEIDER, LEGRAND, FINOLEX WIRES, BELUK APFC Relay etc.

Country Of Origin : India

  • Additional information

    Advance Information*

    Sub Panel with 6 Step APFC - Precision Engineering for Optimal Efficiency

    The Sub Panel with 6 Step Auto Power Factor Correction (APFC) from AMAN is designed with the primary objective of enhancing power factor to achieve higher efficiency and reliability in electrical systems. This sophisticated piece of equipment is a testament to AMAN's commitment to quality and innovation in electrical engineering.

    Key Features

    Advanced Power Factor Correction

    6 Step Auto Power Factor Correction (APFC): The panel features a six-step APFC relay mechanism that enables automatic adjustment and correction of the power factor in six distinct steps. This step-wise correction ensures precise control and optimization of reactive power, thereby reducing electrical losses and improving system efficiency.

    BELUK APFC Relay: Equipped with state-of-the-art BELUK APFC relays, the Sub Panel intelligently monitors and manages the power factor to maintain it at an optimal level consistently.

    High Capacity and Versatility

    Up to 6300 Amp Capacity: Manufactured to handle large electric loads, the panel supports up to 6300 Amps. This makes it suitable for a range of applications from industrial plants to large commercial buildings.

    L&T Sandwich Bus Trunking System Integration: Completing 18 projects involving L&T make sandwich BBT up to 5000 Amp with both copper and aluminium bus configurations, AMAN has demonstrated its expertise in large-scale power distribution implementations.

    Extensive Range of Panel Boards

    MCB Distribution Boards: AMAN manufactures both three-phase and single-phase MCB distribution boards with high-quality components to ensure safe and reliable distribution of electrical power.

    Motor Control Centres (MCC): Engineered for controlling electric motors from a central location, these centres are equipped with modern features to handle high start-up currents and provide protection against overloads.

    PLC Control Panels: Automating and controlling machinery and processes, PLC control panels from AMAN integrate seamlessly into any industrial automation setup.

    Desk Type Panels: Designed for ease of use and aesthetic integration into modern workspaces, desk type panels provide centralized control and monitoring capabilities.

    AMF Panel Boards for DG Sets: These panels ensure automatic switching to generator power during a main power failure, and automatically revert to mains power once restored, ensuring an uninterrupted power supply.

    Motor Test Benches: Supporting both routine and type testing, these benches are tailored for the precise requirements of motor manufacturers and repair shops.

    Customization: AMAN’s strength lies in customization. Tailored solutions to meet unique requirements are provided, ensuring each panel board meets the specific needs of the application.

    Superior Quality Components

    To ensure reliability and durability, AMAN utilizes components from reputable companies: - L&T: Known for their robust and reliable electrical components. - SCHNEIDER: A global specialist in energy management and automation. - LEGRAND: Renowned for high-quality electrical wiring accessories. - FINOLEX WIRES: Offering superior grade wires ensuring safe and efficient power transmission. - BELUK: Pioneering in APFC relays for efficient power factor correction.

    Technical Specifications

    General Specifications

    • Rated Current (In): 6300 Amp.
    • No. of Steps: 6
    • APFC Relay Brand: BELUK
    • Busbar Material: Copper/Aluminium
    • Busbar Rating: Up to 5000 Amp.
    • Application: Industrial, Commercial

    Construction and Design

    • Material: High Strength CRCA Sheets
    • Finish: Powder Coated for durability
    • IP Rating: Up to IP54, ensuring protection against dust and water ingress.
    • Cooling: Natural Air Ventilation with optional Forced Ventilation

    Electrical Characteristics

    • Rated Operational Voltage: 415V AC, 50 Hz
    • Insulation Voltage: 690V
    • Withstand Voltage (1 min test): 2.5 kV
    • Power Loss Class: P3

    Connectivity and Integration

    • Communication Protocols: RS485 Modbus for integration with building management systems.
    • Measuring Instruments: Digital Panel Meters for real-time monitoring of voltage, current, power factor, and energy consumed.
    • Control Method: Microprocessor based with user-friendly interface

    Applications

    The Sub Panel with 6 Step APFC is pivotal in scenarios where enhancing the energy efficiency and reliability of electrical distribution systems is crucial. Some key applications include:

    • Industrial Manufacturing Plants:
    • Ensure consistent power quality to sensitive machinery.

    • Reduce operational costs by minimizing reactive power penalties.

    • Commercial Buildings:

    • Maintain an optimal power factor to improve electrical infrastructure lifespan.

    • Enhance overall energy efficiency, leading to significant cost savings.

    • Renewable Energy Projects:

    • Improve the stability and efficiency of power generated from renewable sources like wind and solar.

    • **Data


    *Disclaimer: This additional description has been automatically generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
