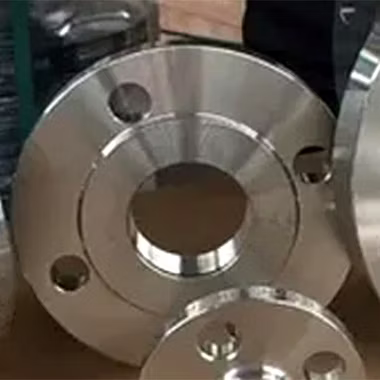

KVN Steels takes pride in manufacturing and supplying high-quality Super Duplex Steel Flanges, designed to meet the diverse needs of industries worldwide. Our flanges are available in various shapes and sizes, tailored specifically to client specifications. Crafted with a unique combination of copper, zinc, and chromium, our Super Duplex Steel Flanges exhibit unmatched strength and corrosion resistance, making them an ideal choice for high-pressure and low-temperature applications. Whether you require Ring Type Joint (RTJ) flanges, slip-on flanges, weld neck flanges, or specialized types like spectacle blind flanges, our products stand out for their premium quality and durability. We adhere strictly to international standards including ASTM A182 and ASME SA182, ensuring our flanges not only meet but exceed customer expectations. Learn more about how our Super Duplex Steel Flanges can enhance your operations and provide you with reliability and performance at competitive prices.
Key Features
| Features | Description |
|---|---|
| Material | Super Duplex Stainless Steel (S32750/S32760) |
| Size Range | 1/2" (15 NB) to 48" (1200 NB) |
| Standard Compliance | ASTM A182 / ASME SA182 |
| Applications | High-pressure and low-temperature applications, chemicals processing, oil & gas, marine environments. |
| Flange Types | Weld Neck, Slip-on, Threaded, Socket Weld, Ring Type Joint, Blind, and Long Weld Neck. |
| Corrosion Resistance | Excellent resistance to pitting, crevice corrosion, and stress corrosion cracking. |
| Supplier | KVN Steels, serving clients globally. |
| Attributes | Description |
|---|---|
| Dimensions Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN. |
| Density | 0.28 lb/in³ |
| Ultimate Tensile Strength | 116 ksi minimum |
| Yield Strength | 80 ksi minimum (0.2% Offset) |
| Elongation (2 inches) | 15% minimum |
| Hardness | Rockwell C 32 maximum |
| Thermal Conductivity | 8.7 Btu/h ft F |
| Electrical Resistivity | 31.5 W-in x 10-6 |
| Coefficient of Thermal Expansion | 7.2 x 10-6/F (68-212F) |
Key Words
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Brand: KVN
Country Of Origin: India
Super Duplex S32750 Ring Type Joint RTJ Flanges, Super Duplex S32760 Slip on Flanges, Super Duplex Steel S32750 Flanges, SAF 2507 Long Weld Neck Flanges, Super Duplex Steel S32750/S32760 Weld Neck Flanges, ASTM A182 Super Duplex Stainless Steel S32750/S32760 Flanges Supplier, ASTM A182 Super Duplex Stainless Steel S32760 Blind Flanges Exporter, Super Duplex S32750/S32760 Flanges Manufacturer in India.
DIN 1.4410 Pipe Flanges, Super Duplex Stainless Steel UNS S32760 Plate Flanges, UNS S32750 Socket Weld Trader, S32760 Super Duplex Stainless Steel Threaded Flanges Stockists, SAF 2507 SORF Flanges, Super Duplex S32760 Spectacle Blind Flanges Dealer, ASME SA182 Super Duplex S32750/S32760 Flanges Supplier in India.
There are many types of flanges available such as Welding Neck Fence- It is generally used in low temperature and high-pressure applications because they required the unrestricted fluid flow convey by the pipe system. Long welding Neck- They are the same as weld neck only difference is in long welding neck the tapered hub (neck) is enlarged and performs like a boring extension. Slip-on Flange-It is attached to the fittings or the pipe by two fillet welds, one outside the cavity and the other one executed inside the flange. They are easily recognized by their compact and slim shape.
Threaded Flange- This is joined not by seam weld but by screwing the pipe onto the flange. They are mostly used in small size low-temperature and low pressure like utility and water services. They are compulsorily required in the explosive area like gas plants and stations. Because in this type of environment welded connection could be dangerous. Socket Weld Flange-On the outer side of the flange a single fillet weld is executed to connect this type of flange to the pipes. Lap Joint Flange- The conjunction with a stub end and feature a flat space is always used in this flange. Blind Flange- Because of the required bolting forces and the system pressure, these flanges hold back outstanding mechanical stress.
Some other special types of the flange are Nipo flange, Weldo flange, Swivel Flange, Elbo Flange, and Lactro Flange, Expanding flange, and Reducing Flange.
S32750/S32760 Super Duplex Stainless Steel Flanges Equivalent Grades
| STANDARD | WNR. |
| Super Duplex S32750 / S32760 | 1.4410 |
Chemical Composition of Super Duplex Steel S32750/S32760 Flanges
Mechanical Properties Of Super Duplex Steel S32750/S32760 Flanges
| C | Cr | Ni | Mo | N | Others |
| 0.020 | 25 | 7 | 4.0 | .27 | S=0.001 |
| Ultimate Tensile Strength, ksi | 116 min. |
| 0.2% Offset Yield Strength 0.2%, ksi | 80 min. |
| 0.1% Offset Yield Strength 0.2%, ksi | 91 min. |
| Elongation in 2 inches, % | 15 min. |
| Hardness Rockwell C | 32 max. |
| Impact Energy, ft.-lbs. | 74 min. |
Physical Properties of S32750/S32760 Super Duplex Steel Flanges
| Density | lb/in3 | 0.28 |
| Modulus of Elasticity | psi x 106 | 29 |
| Coefficient of Thermal Expansion 68-212F/F |
x10-6/F | 7.2 |
| Thermal Conductivity | Btu/h ft F | 8.7 |
| Heat Capacity | Btu/lb/F | 0.12 |
| Electrical Resistivity | W-in x 10-6 | 31.5 |
Specification of Super Duplex Stainless Steel S32750/S32760 Flanges
Super Duplex Stainless Steel Flanges Specification :ASTM A182 / ASME SA182
Dimension Standard :ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard:ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size :1/2 (15 NB) to 48" (1200NB)
