TVSE BS-I302G 2D TABLETOP BARCODE SCANNER

SPECIFICATIONS Image Sensor 752*480 CMOS 1 D EAN13, EAN8, UPCA, UPCE, ISSN, ISBN, Codabar Code 128,Code 93, ITF6, ITF14, Interleaved 2 of 5 Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Gs1 Databar, Code 39, Code 11, MSIPlessy, Plessy, etc. 2 D PDF417, QR Code, Data Matrix,Chinese Sensible Code Resolution 6.67 mil (PDF 417), 5 mil (Code 39) Code 39 40 200mm 20mil EAN13 5 180mm 13mil QR Code 10 180mm 20mil Motion Tolerance 2.5 m/s Scan Angle Pitch ±60* @0* Roll and 0* Skew Roll ±360* @0* Roll and 0* Skew Skew ±50* @0* Roll and 0* Pitch Symbol Contrast =25% Interface USB Dimension L x W x H 83 x 81 x 128 mm Weight 29 g Notification Beep, LED indicator Operating Current 150 mA Standby Current 120 mA Operating Temperature 20*C ~ 50*C Storage Temperature -40°C – 70°C Humidity 5% – 95% RH (non-condensing) ESD ±14kv air discharge,±18kv direct discharge Drop Durability 1.2m drop to concrete fr six side, one drop per side Sealing IP 50 Accessories USB Cable Used to connect the scanner to a host device

Advance Information*

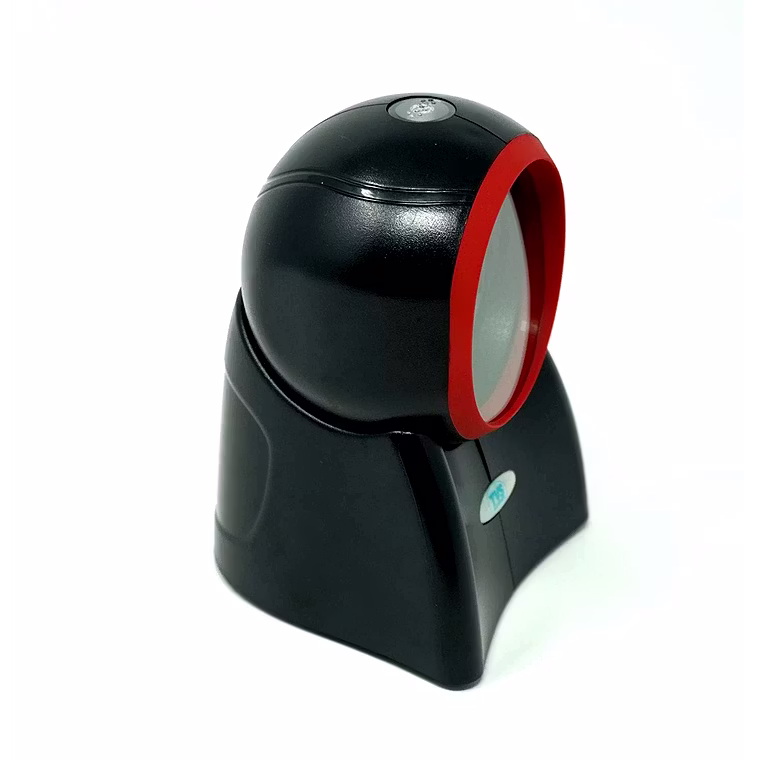

TVSE BS-I302G 2D Tabletop Barcode Scanner

The TVSE BS-I302G 2D Tabletop Barcode Scanner is a powerhouse accessory for any retail environment, production line, or laboratory that demands precise, efficient, and robust barcode scanning capabilities. It brings a host of features and advantages designed to simplify the barcode scanning process, maximizing both speed and efficiency. Below is an exhaustive exploration of every facet of this product, touching on all technical specifications, capabilities, and advantages.

Advantages

One of the primary selling points of the TVSE BS-I302G is its array of advantages particularly tailored to enhance usability and performance in different environments. Here are some features that set it apart:

• Hands-Free Barcode Reading: Ideal for retail applications, production lines, and laboratories. It ensures an uninterrupted workflow by allowing users to scan items without manually operating the scanner.
• Best Motion Capture: The scanner boasts exceptional motion capture capabilities, ensuring accurate readings even when objects are moving. This is crucial in fast-paced environments where items need to be scanned quickly.
• Best-in-Class Frames per Second Rating: It sets a high standard with an outstanding frames per second (FPS) rating, ensuring that there’s no lag or delay in scanning.
• Auto Trigger and Manual Mode: Easy switching between automatic and manual operation allows for flexible usage based on user preferences or specific needs.

Image Sensor

The BS-I302G is equipped with a 752*480 CMOS Image Sensor, which is fundamental for capturing high-resolution images of barcodes. This level of precision ensures that even the most complex codes are read accurately.

Barcode Types Supported

This versatile scanner supports a broad range of barcode types, making it suitable for various applications. It can read both 1D and 2D barcodes, which include:

• 1D Barcodes: EAN13, EAN8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF6, ITF14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessy, Plessy, and others.
• 2D Barcodes: PDF417, QR Code, Data Matrix, Chinese Sensible Code.

Resolution and Scanning Distances

The scanner's impressive resolution allows it to read even the smallest barcodes with ease. Specific capabilities include:

• 6.67 mil (PDF 417) and 5 mil (Code 39)
• Code 39: 40mm to 200mm
• 20mil EAN13: 5mm to 180mm
• 13mil QR Code: 10mm to 180mm
• 20mil Motion Tolerance: 2.5 m/s

Scan Angles

The scanner offers a comprehensive range of scan angles to accommodate various scanning orientations: - Pitch Angle: ±60° @0° Roll and 0° Skew - Roll Angle: ±360° @0° Roll and 0° Skew - Skew Angle: ±50° @0° Roll and 0° Pitch

Symbol Contrast

With a symbol contrast requirement as low as 25%, the BS-I302G can easily read barcodes that have low contrast against their backgrounds, increasing its versatility across different labeling conditions.

Interface

The scanner is equipped with a USB interface, making it easy to connect to a variety of host devices, from PCs to POS systems.

Dimensions and Weight

• Dimensions: 83 x 81 x 128 mm
• Weight: 290 g

This compact and lightweight design ensures that the scanner fits seamlessly into tight retail spaces or crowded lab environments without adding significant bulk.

Notifications

• Beep: Audible feedback when a barcode is successfully scanned
• LED Indicator: Visual confirmation for successful scans

Power Consumption

• Operating Current: 150 mA
• Standby Current: 120 mA

These power ratings ensure that the BS-I302G is efficient and won't put undue strain on your power systems.

Operating Environment

• Operating Temperature: 20°C to 50°C
• Storage Temperature: -40°C to 70°C
• Humidity: 5% to 95% RH (non-condensing)

These specifications make the scanner suitable for a wide range of environments, from hot production lines to cold storage facilities.

Durability

• ESD Protection: ±14kv air discharge, ±18kv direct discharge
• Drop Durability: 1.2m drop to concrete on six sides, one drop per side
• Sealing: IP50

These features collectively ensure
