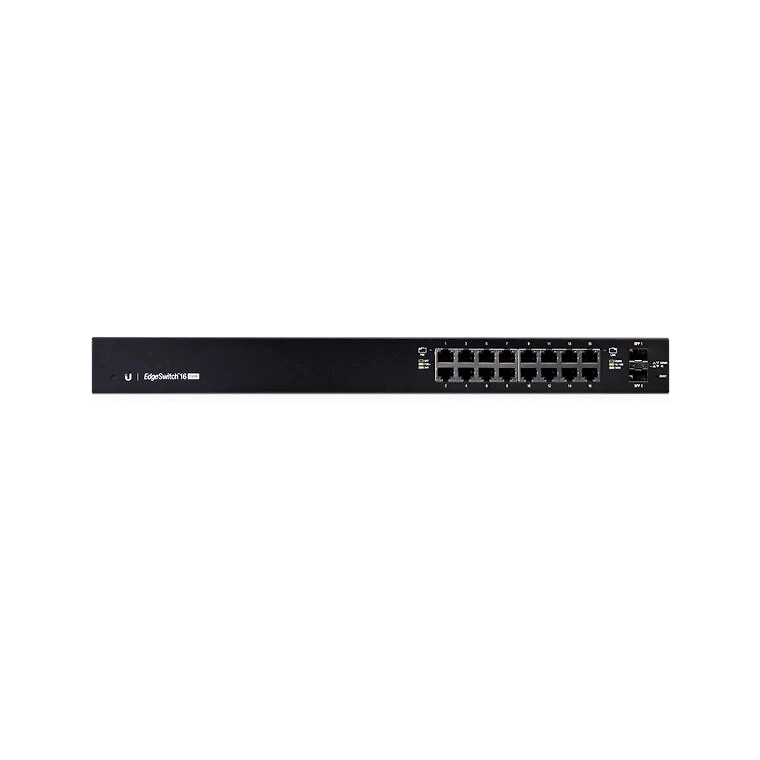

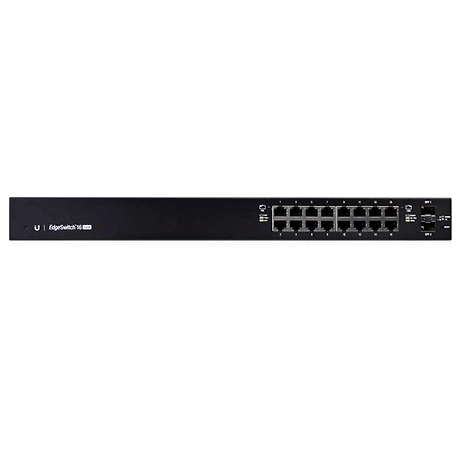

Ubiquiti EdgeSwitch PoE 16 (150W)

Dimensions 443 x 43 x 221 mm
(17.44 x 1.69 x 8.70"),
Weight With Mount Brackets 2.80 kg (6.17 lb),
2.89 kg (6.37 lb),
Total Non-Blocking Line Rate 18 Gbps,
Max. Power Consumption 150W,
Power Method 100-240VAC/50-60 Hz, Universal Input,
Power Supply AC/DC, Internal, 150W DC,
Shock and Vibration ETSI300-019-1.4 Standard,

Advance Information*

Ubiquiti EdgeSwitch PoE 16 (150W) Detailed Description

Introduction

The Ubiquiti EdgeSwitch PoE 16 (150W) is a high-performance, managed PoE+ Gigabit switch designed to meet the diverse networking needs of businesses. Renowned for its seamless network connectivity, the EdgeSwitch delivers robust switching performance and intelligent switching for growing networks. Whether for small businesses, schools, or corporate environments, this switch provides an effective, reliable, and scalable solution.

Design and Dimensions

The physical design of the Ubiquiti EdgeSwitch PoE 16 (150W) is both sleek and practical. With dimensions of 443 x 43 x 221 mm (17.44 x 1.69 x 8.70 inches), it fits comfortably into standard racks, providing a streamlined appearance and efficient placement within networking environments.

• Dimensions: 443 x 43 x 221 mm (17.44 x 1.69 x 8.70 inches)
• Weight with Mount Brackets: 2.80 kg (6.17 lb)
• Weight without Mount Brackets: 2.89 kg (6.37 lb)

The chassis design is engineered for durability and optimal airflow, ensuring consistent performance even under substantial network loads. The inclusion of mounting brackets makes installation easy and secure.

Performance and Capacity

The EdgeSwitch PoE 16 (150W) boasts impressive capabilities to handle high traffic data transfers without congestion. It delivers a total non-blocking line rate of 18 Gbps, ensuring data packets are forwarded at wire speed. This capacity is crucial for operations that demand instantaneous data processing and swift network responses.

• Total Non-Blocking Line Rate: 18 Gbps
• Maximum Power Consumption: 150W

Power Supply and PoE Capabilities

One of the EdgeSwitch's significant advantages is its integrated power over Ethernet (PoE) support. It features a robust internal AC/DC power supply, capable of delivering a consistent 150W DC. The power method supports a universal input of 100-240VAC at 50-60 Hz, providing versatility for various global regions and power standards.

• Power Method: 100-240VAC/50-60 Hz, Universal Input
• Power Supply: AC/DC, Internal, 150W DC

This PoE capability facilitates the powering of connected devices such as IP cameras, VoIP phones, and wireless access points directly from the switch, reducing the need for separate power sources and simplifying the overall network infrastructure.

Robust Build and Compliance

The EdgeSwitch PoE 16 (150W) is built to endure and perform in various environmental conditions, adhering to the ETSI300-019-1.4 standard for shock and vibration. This makes it suitable for environments where physical impacts or vibrations may occur, ensuring consistent performance through its robust construction.

• Shock and Vibration: ETSI300-019-1.4 Standard

Versatile Management and Usability

The EdgeSwitch PoE 16 (150W) offers an intuitive and comprehensive management interface. Network administrators can manage multiple features such as port configurations, link aggregation, VLAN settings, and more. The user-centric design allows for easy navigation and configuration, making the setup and maintenance processes straightforward even for complex networks.

Management capabilities include:

• Port Mirroring: Allows the duplication of data from specified ports for enhanced monitoring and troubleshooting.
• Link Aggregation: Increases bandwidth and redundancy by combining multiple Ethernet links.
• VLAN Support: Segments network traffic, adding an extra layer of security and improving traffic management.

Advanced Switching Features

Advanced switching features are crucial for maximizing network efficiency, and the Ubiquiti EdgeSwitch does not disappoint. It offers several advanced features, including:

• Quality of Service (QoS): Prioritizes network traffic to ensure critical data is transmitted with the highest priority.
• IGMP Snooping: Helps manage and filter multicast traffic to optimize network performance.
• STP/RSTP/MSTP: Ensures logical loop-free topology for redundant links, enhancing overall network reliability.
• Access Control Lists (ACL): Provides granular control over network traffic, contributing to network security and performance.

Application Scenarios

The versatility and power of the EdgeSwitch PoE 16 (150W) make it suitable for a variety of applications, such as:

• Small to Medium Business Networks: Providing robust and scalable connectivity.
• Educational Institutions: Supporting high-speed access for classrooms, labs, and administrative offices.
• Corporate Environments: Enhancing connectivity for departments and remote offices.
• Retail Spaces: Ensuring reliable connectivity for Point of Sale (POS) systems, inventory management, and security cameras.

Conclusion

The Ubiquiti EdgeSwitch PoE 16 (150W) stands out as a versatile and
