Alloy Steel Shackles

Advance Information*

Introduction

Alloy Steel Shackles by CREATOMAC INDUSTRIES are designed to meet the demanding requirements of lifting, rigging, and tethering applications. Crafted from high-grade alloy steel, these shackles are engineered for exceptional strength, durability, and resilience. Uniquely suited for harsh environments, they exhibit remarkable resistance to wearing, corrosion, and impact, making them an essential component in various industrial, maritime, and construction applications. With an unwavering dedication to quality and safety, CREATOMAC INDUSTRIES ensures that each shackle undergoes stringent quality control measures, ensuring reliability, longevity, and optimal performance.

Key Features

Superior Strength and Durability

Material Composition: CREATOMAC INDUSTRIES utilizes premium-grade alloy steel, combining elements such as chromium, molybdenum, and nickel to enhance the steel's structural integrity.

High Load Capacity: These shackles are engineered to bear substantial loads, with working load limits (WLL) appropriate for extensive industrial use.

Enhanced Toughness: The alloy steel construction provides superior toughness, ensuring the shackles can withstand heavy use under extreme conditions without compromising their performance.

Advanced Coating and Corrosion Resistance

Protective Coatings: Each shackle is coated with a high-quality finish that shields against environmental factors, such as moisture and chemicals, which can lead to rust and corrosion.

Longevity in Adverse Conditions: The corrosion-resistant properties ensure extended service life even in seawater or highly corrosive environments, making them ideal for maritime applications.

Precision Engineering

Accurately Machined: Precision engineering ensures that each shackle has consistent dimensions, providing a perfect fit and maintaining the integrity of the load-bearing capacity.

Rigorous Testing: Each shackle is subjected to rigorous testing procedures to verify its mechanical properties and ensure compliance with industrial safety standards.

Variants and Specifications

CREATOMAC INDUSTRIES offers a diverse range of Alloy Steel Shackles to cater to various requirements. Below is a detailed look into the different types, sizes, and specifications available.

Types

1. Anchor Shackles (Dee Shackles):
2. Designed for versatile applications.

3. Can be used with multiple connection points.

4. Chain Shackles:

5. Ideally suited for attaching to chains.

6. Works well in dragging and hoisting operations.

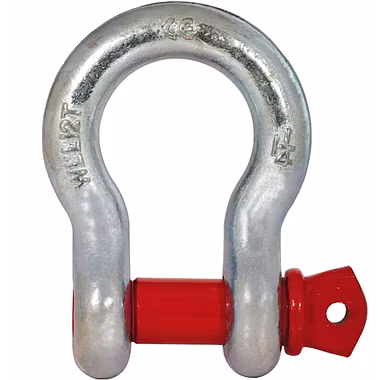

7. Bow Shackles:

8. Features a large "O" shaped bow.
9. Allows for versatile attachment configurations and multiple connections.

Sizes and Dimensional Specifications

Each type of shackle is available in multiple sizes to suit different applications and load requirements.

Key Dimensions: - Size Range: Shackles are available from 1/4 inch to 2 inches. - Pin Diameter: Varies based on the shackle size, ensuring optimal load distribution and structural integrity. - Inside Width: Tailored for specific applications. - Inside Length: Designed to provide ample space for connections and ensure ease of use.

Load Bearing Capacities

• Working Load Limit (WLL): Shackles are specified with WLL values ranging from 0.5 tons to over 100 tons depending on size and type. This ensures users can choose the appropriate shackle for the required load.
• Breaking Strength: Typically 4 to 6 times the Working Load Limit, providing an ample safety margin.

Applications

Industrial

Heavy Lifting and Rigging

• Used extensively in crane operations for lifting heavy machinery and materials.
• Suitable for rigging setups where robust load-bearing connectors are essential.

Construction

• Essential in structural engineering tasks where steel components are lifted, secured, and positioned.
• Used for connecting and securing scaffolding systems.

Marine

• Ideal for use in anchor chains, towing arrangements, and mooring setups.
• Provides reliable performance in saltwater environments due to corrosion resistance.

Mining

• Utilized in the handling and transportation of heavy mining equipment.
• Serves in connecting lifting slings, hoists, and pulleys for ore extraction processes.

Advantages of Choosing CREATOMAC INDUSTRIES Alloy Steel Shackles

Unmatched Quality

• ISO Certified Manufacturing: Ensures every shackle is produced under stringent quality controls and meets international standards.
• In-House Testing: Includes tensile strength tests, fatigue tests, and impact resistance tests.

Safety

• Fatigue Testing: Certified to endure prolonged lifting cycles without failure.
• Design Compliance: Meets and exceeds safety standards set by organizations like ASME, OSHA, and European Norms.

Choosing the Right Shackle

Load Requirements

• Carefully assess the Working Load Limit needed for your application.
• Ensure that the selected shackle exceeds the maximum weight of the load to maintain safety.

Environmental Factors

• Consider the environmental conditions where the shackle will be used.
• Alloy steel with enhanced corrosion resistance is crucial for maritime and chemical exposure.

Connection
