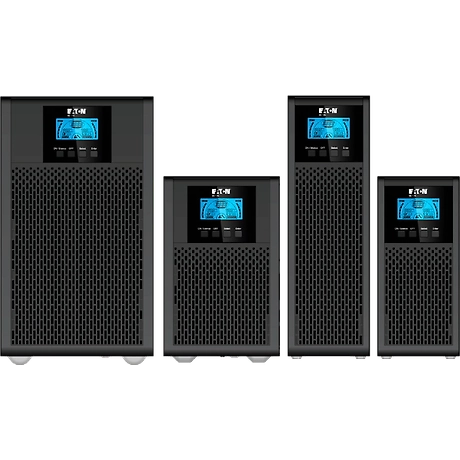

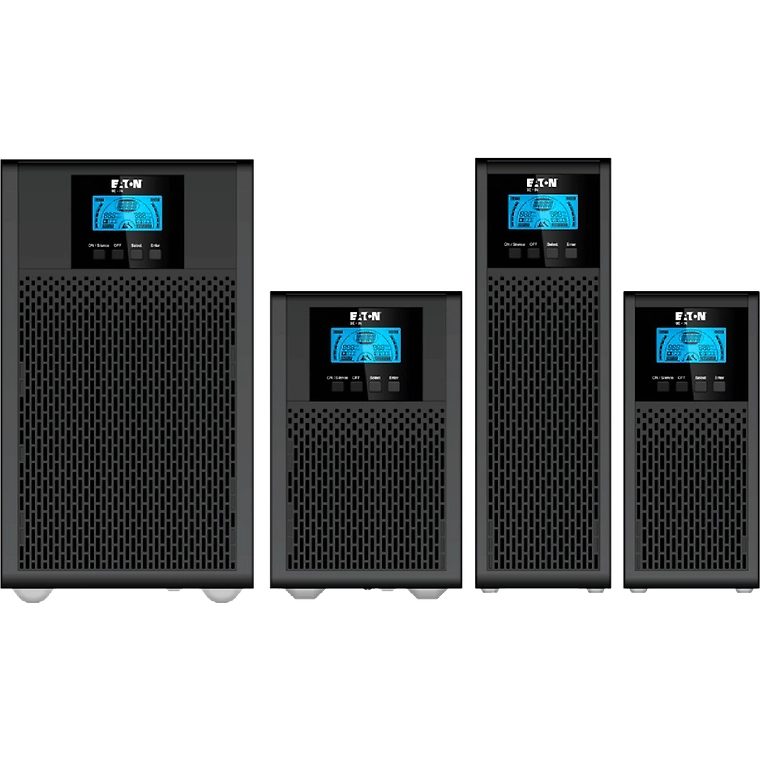

Eaton 9E - 2 KVA UPS

Product Features (USP)

• IGBT based Rectifier True Online Double Conversion Robust design
• Double Conversion Efficiency >91% & ECO mode efficiency up to 98%
• 100% load @ 0~40C operating temp.
• Active Input Power Factor Correction 0.99.
• O/P power factor 0.9 (O/P power factor 0.8 for long backup model)
• Digital Charger Technology provides 02-10A charging current
• Generator Compatible with Wide Input voltage window
• Inbuilt OVCD (Over Voltage Cut-off device)

Applications

• Networking/Server/Storage
• Work from Home and School & office power backup requirement
• Wiring Closets
• Security and Surveillance System.
• Industrial Automation Control.
• Laboratory Equipment.
• ATM/Telecom/Railway Signalling.

Warranty

2-year warranty on UPS and 1-year warranty on batteries. For Product warranty registration and service support, please reach out to Eaton on toll-free number: ***** or ***** and/or email on *****

Advance Information*

Product Description

The Eaton 9E - 2 KVA UPS is an advanced and efficient uninterruptible power supply system designed to provide reliable power protection for critical equipment and applications. With a robust design and the integration of IGBT based rectifier, this UPS ensures superior performance and efficiency. The 9E - 2 KVA series brings multiple features and specifications tailored to address a variety of power supply needs in commercial, industrial, and residential environments.

Product Specifications

• Eaton Part Code: 9103-73857XT1
• Capacity: 2 kVA
• Battery: External battery system (72 V DC / 6 Battery UPS)
• User Manual: Included
• Input Cable: Included
• Output Cable: Included
• Dimensions (WxDxH): 19.4 x 48.8 x 45.6 cm
• Weight: 6.8 kg
• Input Voltage: Wide input voltage window
• Output Voltage: Standard stable output
• Form Factor: Tower
• Technology: True Online Double Conversion
• Cooling System: Advanced cooling system to regulate the unit’s temperature

Key Features

1. IGBT Based Rectifier

The Eaton 9E - 2 KVA UPS integrates an Insulated Gate Bipolar Transistor (IGBT) based rectifier. This advanced feature allows for high efficiency and improved power quality. IGBT technology significantly reduces input harmonics and enhances energy efficiency, making the 9E - 2 KVA ideal for environments requiring clean and reliable power.

2. True Online Double Conversion

This UPS provides true online double conversion, ensuring that the load is always powered by a conditioned and regulated source of power. This method delivers consistent power quality with zero transfer time, providing ultimate protection for sensitive electronic equipment.

3. Robust Design

The sturdy structure of the Eaton 9E series is built to withstand harsh and varying conditions, enabling it to perform exceptionally in diverse environments. This robust design makes it suitable for a wide range of applications, from server rooms to industrial setups.

4. High Efficiency

One standout feature of the Eaton 9E - 2 KVA UPS is its exceptional efficiency rates. The double conversion efficiency exceeds 91%, while the ECO mode offers efficiency up to 98%, helping to reduce overall operating costs and enhance energy savings.

5. Wide Operating Temperature

The Eaton 9E - 2 KVA UPS can operate efficiently at 100% load even at temperatures as high as 40°C. This capability ensures uninterrupted performance in varying temperature zones, making it reliable for different environmental conditions.

6. Active Input Power Factor Correction

With an active input power factor correction of 0.99, the Eaton 9E - 2 KVA UPS significantly reduces reactive power and improves overall power factor. This results in reduced electrical waste and improved system efficiency.

7. Output Power Factor

The output power factor is 0.9, making this UPS capable of handling greater power loads compared to typical UPS systems. For long backup models, the output power factor is 0.8, ensuring flexibility and adaptability based on specific power requirements.

8. Digital Charger Technology

This UPS employs advanced digital charger technology that provides a charging current range of 02-10A. This flexibility accommodates various battery types and sizes, ensuring optimal battery health and longevity.

9. Compatibility with Generators

The Eaton 9E - 2 KVA UPS is compatible with generators, facilitating its use in environments where a backup generator may be necessary. This feature ensures continuous power, even during extended outages.

10. Inbuilt OVCD (Over Voltage Cut-off Device)

The inclusion of an inbuilt Over Voltage Cut-off Device (OVCD) protects connected equipment from potential damage caused by voltage spikes or surges, enhancing the overall reliability and safety of the UPS.

Applications

Given its versatile features, the Eaton 9E - 2 KVA UPS is suitable for a wide range of applications, including but not limited to:

Networking/Server/Storage

Ensures uninterrupted power supply for critical server and storage systems, preventing data loss and enabling continuous business operations.

Work from Home and School & Office Power Backup

Provides reliable power backup for home offices, remote workstations, and educational setups, ensuring productivity is maintained without interruption during power outages.

Wiring Closets

Ideal for wiring closets, the Eaton 9E efficiently powers network switches, routers, and other IT equipment, maintaining network reliability.

Security and Surveillance Systems

Ensures continuous operation of security cameras, alarm systems, and other surveillance equipment, safeguarding premises at all times.

Industrial Automation Control

Supports industrial automation systems, ensuring operational continuity and reducing downtime in manufacturing and processing environments.

Laboratory Equipment

Provides stable power for sensitive
