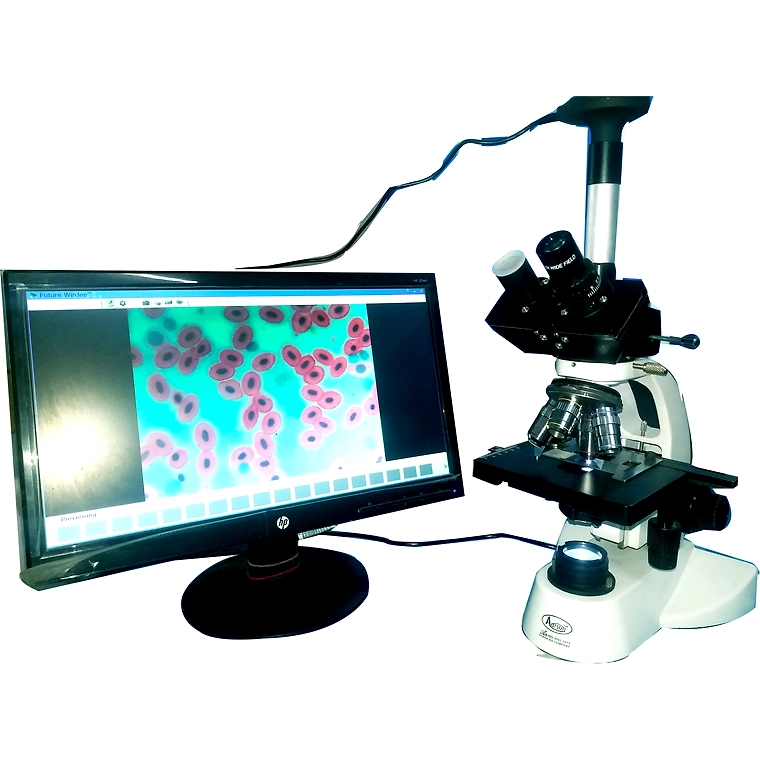

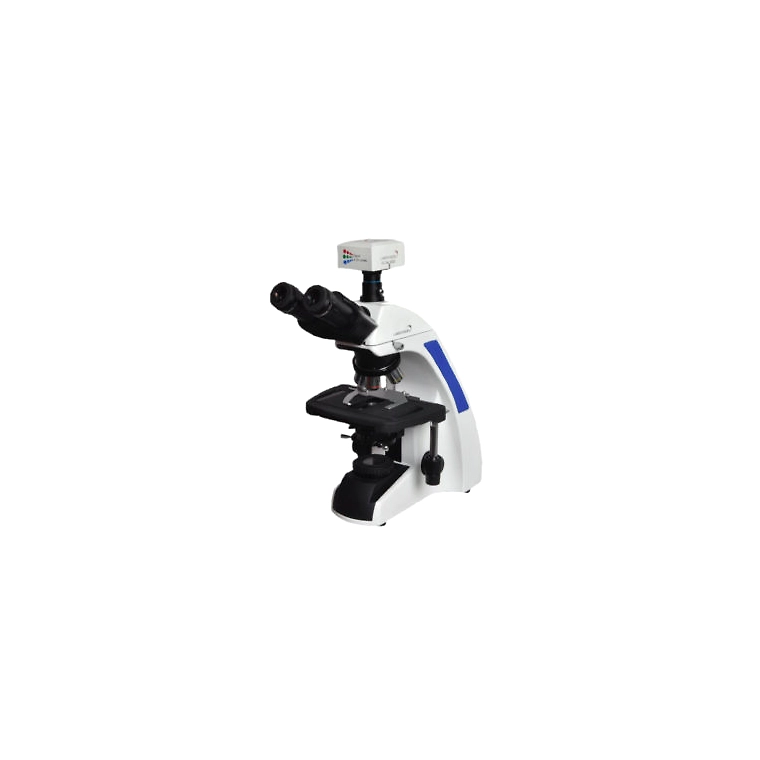

Research Microscope Trinocular with camera

Brand: AARSON

You Save:

Inclusive of all taxes

  • Product not available

Please select seller to proceed:

Send message to seller
Send Inquiry
Research Microscope Trinocular with camera
High quality Binocular Microscope for schools, colleges and research. Square sturdy base, streamlined design.
Trinocular Head
 It is rotatable through 360° with inter pupillary distance 55 mm to 75mm and with a straight replaceable micro photographic tube.
Stage and Condenser
Rectangular 115 x 125 mm with co-axial mechanical stage. Sub stage movable by rack and pinion Abbe Condenser of 1.25 N.A. with iris diaphragm and filter.
Coarse and fine focusing
Coarse focusing by rack and pinion for stage movement, built in locking device to avoid breakage to Slide. Fine focusing by graduated drum type helical screw graduated to 0.002 mm. Quadruple revolving nose piece with ball bearing movement. Supplied in wooden box having lock and key.
Optics
    Eye piece                               15x Huygenian in pair, 10x WF in pair
    Objectives Achromatic        4x, 10x, 40 or 45x and 100x Oil Immersion spring loaded

Country Of Origin : India

  • Additional information

    High quality Binocular Microscope for schools, colleges and research. Square sturdy base, streamlined design.
    Trinocular Head
     It is rotatable through 360° with inter pupillary distance 55 mm to 75mm and with a straight replaceable micro photographic tube.
    Stage and Condenser
    Rectangular 115 x 125 mm with co-axial mechanical stage. Sub stage movable by rack and pinion Abbe Condenser of 1.25 N.A. with iris diaphragm and filter.
    Coarse and fine focusing
    Coarse focusing by rack and pinion for stage movement, built in locking device to avoid breakage to Slide. Fine focusing by graduated drum type helical screw graduated to 0.002 mm. Quadruple revolving nose piece with ball bearing movement.
    Optics
        Eye piece                         15x Huygenian in pair, 10x WF in pair
        Objectives Achromatic        4x, 10x, 40 or 45x and 100x Oil Immersion spring loaded



    Advance Information*

    Overview

    The Research Microscope Trinocular with Camera from AARSON stands as a paragon of meticulous design and functional excellence. Designed specifically for the educational and research environments of schools, colleges, and professional laboratories, this microscope offers unparalleled performance. The combination of superior optics, a versatile trinocular head, precise focusing mechanisms, and a robust build ensures that this microscope is both user-friendly and highly effective for various scientific applications.

    Trinocular Head

    The trinocular head of the Research Microscope features an innovative design that allows it to rotate a full 360 degrees, enabling users to share the view from the microscope easily without moving the entire unit. The inter-pupillary distance is adjustable between 55 mm and 75 mm, accommodating various users and ensuring comfort during prolonged use. Additionally, the head is complemented with a straight replaceable micro photographic tube, making it easier to integrate digital imaging capabilities.

    Stage and Condenser

    The rectangular stage measures 115 x 125 mm and comes equipped with a co-axial mechanical stage for ease of use. Precision is further ensured with the sub-stage movement facilitated by a robust rack and pinion Abbe condenser of 1.25 N.A., complete with an iris diaphragm and filter. This condenser provides enhanced contrast and resolution of the specimen by controlling the amount of light that reaches the sample.

    Focusing System

    Achieving high-quality imagery is facilitated by a dual focusing system. Coarse focusing is managed by a rack and pinion mechanism designed for reliable stage movement while incorporating a built-in locking device to avoid any accidental slide breakage. The fine focusing is achieved through a drum-type helical screw mechanism, providing adjustments graduated to 0.002 mm. This ensures precise focusing and detailed specimen observation. The revolving nosepiece, capable of holding four objectives, is designed with a ball bearing system for smooth transitions between magnifications.

    Optics

    The optical system of this microscope is designed to meet the highest standards. It includes pairs of eye-pieces: 15x Huygenian and 10x Wide Field (WF), for diverse observational needs. The achromatic objectives range in magnifications: 4x, 10x, 40x or 45x, and 100x oil immersion (spring-loaded), offering a comprehensive suite to cover varied microscopic investigations. This array of high-quality lens options ensures clear, sharp, and accurate observations.

    Build Quality

    Constructed from high-quality materials, the microscope is designed to offer long-term durability. Its square, sturdy base provides ideal stability during use, and its streamlined design enhances both aesthetic and functional qualities. The microscope is supplied with a wooden storage box that includes a secure lock and key, ensuring safe transport and storage.

    Additional Features

    • Trinocular Head: 360° rotatable, inter-pupillary distance adjustable from 55 mm to 75 mm, includes replaceable micro photographic tube.
    • Stage and Condenser: 115 x 125 mm rectangular co-axial mechanical stage, sub-stage movement via rack and pinion, Abbe condenser (1.25 N.A.) with iris diaphragm and filter.
    • Focusing Mechanism: Coarse focusing via rack and pinion, built-in locking device for slide protection, fine focusing by graduated drum type helical screw (0.002 mm), quadruple revolving nosepiece with ball bearings.
    • Optics: Pairs of 15x Huygenian and 10x WF eyepieces, achromatic objectives of 4x, 10x, 40x/45x, and 100x oil immersion (spring-loaded).
    • Build Quality: Square sturdy base, streamlined design, supplied in a wooden box with lock and key.

    This Research Microscope Trinocular with Camera by AARSON encapsulates the ideal blend of advanced features and robust engineering, making it a valuable tool for scientific research and education.


    *Disclaimer: This additional description has been automatically generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
