WHEEL TYPE EARTH AUGER

Advance Information*

Overview

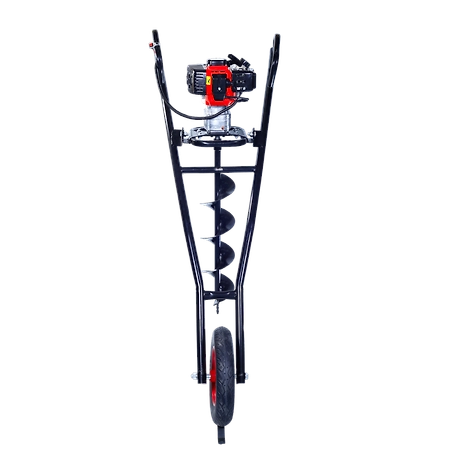

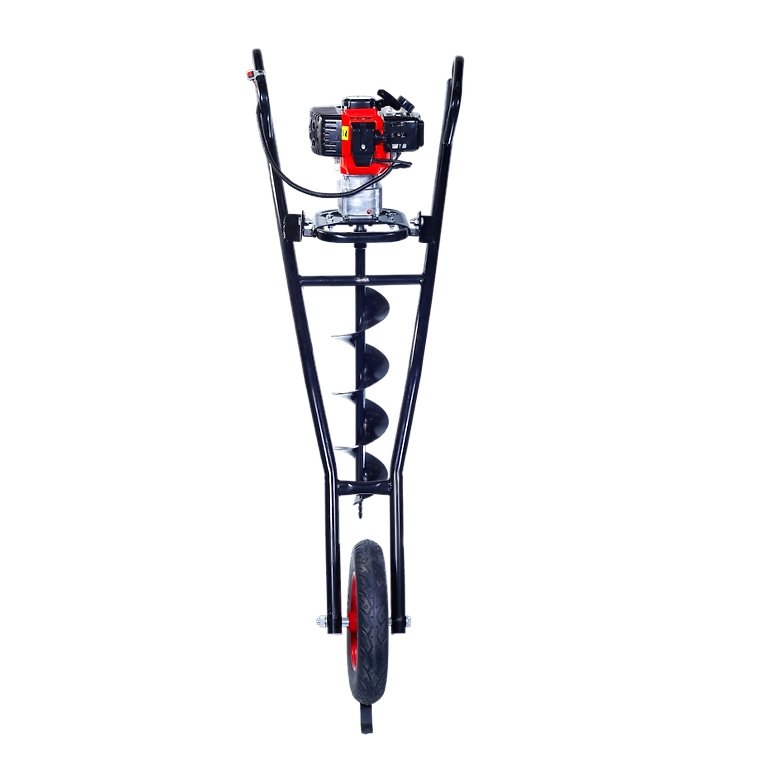

The Sharp Garuda Wheel Type Earth Auger is an innovative solution that significantly simplifies the task of making holes for planting saplings, setting up fencing, installing electric poles, and various other such applications. This user-friendly tool is designed to be effortlessly operated by a single person, streamlining heavy-duty tasks that would otherwise require considerable effort and manpower. Sharp Garuda, a trusted name in innovative agricultural and construction equipment, ensures that the Wheel Type Earth Auger stands as a testimony to durability, efficiency, and performance.

Variants

The Sharp Garuda Wheel Type Earth Auger comes in four main variants, each offering specific features designed to cater to a variety of needs:

1. EARTH AUGER WHEEL TYPE-150 (Model: SG-WT 52/150)
2. EARTH AUGER WHEEL TYPE-200 (Model: SG-WT 52/200)
3. EARTH AUGER WHEEL TYPE-250 (Model: SG-WT 63/250)
4. EARTH AUGER WHEEL TYPE-300 (Model: SG-WT 63/300)

Each variant brings its unique specifications tailored to different drilling diameters and depths, accommodating a wide range of practical applications.

Common Features

Efficient Design

• Single-Person Operation: Each variant is designed to be operated by a single individual, simplifying the process and reducing the need for additional manpower.
• Wheel Type Mobility: The wheeled design enhances maneuverability, making it easier to position the auger accurately and move it across various terrains.

Engine Specifications

• Two-Stroke, Air-Cooled Engine: All models are powered by a robust two-stroke, air-cooled engine, providing reliable performance and durability.
• Electronic (CDI) / Magneto Ignition: Ensures quick and easy start-up, further enhancing user convenience.
• Diaphragm Carburetor: Efficient fuel management for smoother operation.

Transmission and Control

• Centrifugal Friction Clutch: For smooth power transmission and easy handling.
• Reduction Ratio: 40:01:00 across all variants, ensuring optimal torque and power transfer for efficient drilling operations.

Fuel Efficiency

• Petrol 2T Oil Mix (30:1): All models are designed to run on a petrol and 2T oil mix in a 30:1 ratio, promoting efficient fuel usage and reducing operational costs.
• Fuel Tank Capacity: Models SG-WT 52/150 and SG-WT 52/200 have a 1-liter tank, while models SG-WT 63/250 and SG-WT 63/300 feature a larger 1.45-liter fuel tank.

Variant-Specific Features

EARTH AUGER WHEEL TYPE-150 (SG-WT 52/150)

• Weight: 8.5 kg
• Auger Bit Diameter: 150 mm
• Engine Model: 1E44F-2A
• Power: 1.4 kW / 6500 r/min
• Displacement: 51.7 ml
• Idle Speed: 3000 ± 150 r/min
• Clutch Speed: 4200 ± r/min

EARTH AUGER WHEEL TYPE-200 (SG-WT 52/200)

• Weight: 8.5 kg
• Auger Bit Diameter: 200 mm
• Engine Model: 1E44F-2A
• Power: 1.4 kW / 6500 r/min
• Displacement: 51.7 ml
• Idle Speed: 3000 ± 150 r/min
• Clutch Speed: 4200 ± r/min

EARTH AUGER WHEEL TYPE-250 (SG-WT 63/250)

• Weight: 9.5 kg
• Auger Bit Diameter: 250 mm
• Engine Model: 1E48F
• Power: 2.2 kW / 7500 r/min
• Displacement: 63.3 ml
• Idle Speed: 3000 ± 150 r/min
• Clutch Speed: 4200 ± r/min

EARTH AUGER WHEEL TYPE-300 (SG-WT 63/300)

• Weight: 10 kg
• Auger Bit Diameter: 300 mm
• Engine Model: 1E48F
• Power: 2.2 kW / 7500 r/min
• Displacement: 63
