Overview Motors designed for optimized performance and longer life on critical above deck and below deck applications. Sizes .2-500Hp, .1-375kW: 115-690 VAC, TEFC, TENV, DPP, or TEWC: Spraytight, Watertight, Explosion Proof, Submersible Enclosures: NEMA & IEC frame sizes Features Motors meet all pertinent military specifications for fractional and integral AC motors including critical specifications pertaining to energy efficiency, sealed insulation, reduced weight, low airborne noise, and low structure-borne noise requirements. Specifications include: Mil-M-17059A, Mil-DTL-17060, Mil-S-901, Mil-STD-167-1, Mil- STD-740, Mil-STD-2037 Suggested applications Pumps, fans & air handling, deck equipment, underway replenishment equipment, thrusters, auxiliary propulsion, winches, capstans

Overview Specially modified motors designed for above deck and offshore (wet environments) and below deck (dry environments) capable of meeting multiple Marine agency certifications and requirements. Sizes .2-1,500Hp, .1-1,120kW: 115-4000 VAC, TEFC, TENV, DPP, or TEWC: NEMA & IEC frame sizes Features Marine duty epoxy paint, corrosion resistant hardware, commercial VPI windings, steel, casting iron, or ductile iron construction, spraytight, watertight, explosion proof enclosures. Certifications include: ABS, Lloyds Registry, DNV, USCG-256, IEEE-45-2002, and NEMA MG1 Suggested applications Pumps, fans, deck equipment, thrusters, auxiliary propulsion, winches, capstans

Overview Motors designed for general unit handling applications Sizes 0.37 - 5.6 kW, 0.5 - 7.5 Hp totally enclosed, single and three phase Features Motors feature an oversized low profile top mounted conduit box on 56 and 140T frames that provides easy access for making connections. Footed frames include slotted feet for easy mounting on OEM conveyors. UL/CSA recognized and CE certified Suggested applications Conveyors, baggage handling, unit handling, packaging, door operators, elevators, hoists

Overview Buffer designed for use with soft cloth wheels, guards and tool rests. Sizes 0.19 - 536 kW, 0.25 - 7.5 Hp, 0.25 - 7.5 Hp Features Steel frame enclosure and base Suggested applications Buffing

Overview Close coupled pump motors include over-sized ball bearings with locked drive end construction to minimize endplay. Sizes 0.37 - 56 kW, 0.5 - 75 Hp totally enclosed, three phase 0.37 - 74.5 kW, 0.5 - 100 Hp open drip proof, three phase 0.33 - 11 kW, 0.33 - 15 Hp totally enclosed, single phase 0.37 - 11 kW, 0.5 - 15 Hp open drip proof, single phase

Overview Right angle and parallel shaft designs for industrial applications with precision matched DC motor and gear rations for optimized performance Sizes 0.85 - 124 Nm, 7.5 - 1,100 in.-lbs., output torque Features Armature / rotor is dynamically balanced for vibration free operation. Each unit is factory filled with synthetic oil and lubricated for life maximum efficiency and reduced maintenance. Suggested applications Material handling, packaging machinery, machine tools, conveyors, printing presses, commercial ovens, car washes

Overview Direct drive motor for HVAC applications Sizes 0.18 - 1.11 kW, 0.25 - 1.5 Hp open drip proof, single phase 0.19 - 7.5 kW, 0.25 - 10 Hp totally enclosed, open drip proof, three phase

Overview Stainless steel motors designed for harsh food processing environments. Sizes 0.25 - 15 kW, .33 - 20 Hp

Overview A base mounted on/off switch or starter with overload protection and three year warranty Sizes 152 - 355 mm, 6 - 14 in. wheel diameters, single and three phase Features A base mounted on/off switch or starter with overload protection and three year warranty Suggested applications Grinding

Overview Designed for use where additional protection is required against wet and washdown environments, corrosive environments and marine applications. Sizes 0.37 - 7.5 kW, 0.5 - 10 Hp totally enclosed, three phase

Overview Featuring Dodge short series brakes which are spring set, magnetically released power off type brakes integrally mounted to the motor for the most compact design Sizes 0.6 - 48 Nm continuous torque Features 3x continuous torque Totally enclosed, CE/cURus A compact segmented lamination design decreases overall length of the motor. A completely encapsulated winding allows heat to dissipate while protecting internal components from contamination. IP65 rated enclosure with optional shaft seal installed Suggested applications Cut-to-length, flying shear, machining, labeling, material handling, winding, 3D printing, robotics elevators, hoists

Overview UL & CSA approved for Class I, Group D; Class I, Group D, Class II, Group F & G; Class I, Group C & D, Class II Group F & G. Sizes 0.18 - 224 kW, 0.25 - 300 Hp totally enclosed, single and three phase

Overview Motors designed for grille or resilient base mount direct drive fan applications Sizes 0.18 - 0.6 kW, 0.25 - 0.75 Hp totally enclosed, single phase

Overview Right angle and parallel shaft designs for industrial applications precision matched AC motor and gear ratios for optimized performance Sizes 0.56 - 124 Nm, 5 - 1,100 in.-lbs., output torque Features Each unit is factory filled with synthetic oil and lubricated for life maximum efficiency and reduced maintenance. Right angle configurations feature exclusive internal expansion bladder to keep lubrication in and contamination out. Suggested applications Material handling, packaging machinery, machine tools, conveyors, printing presses, commercial ovens, car washes

Overview Super E NEMA Premium efficient HVAC motors in ODP and TEFC designs with ball bearings and plugged grease packages Sizes 0.75 - 74.57 kW, 1 - 100 Hp totally enclosed, open drop proof, three phase

Overview Industrial belt sanders Sizes 0.25 - 1.12 kW, 0.25-1.5 Hp, three phase Features There are several industrial belt sander options, fixed and tiltable belts, grinder/sanders and even an adjustable speed sander for increased flexibility. All units come with a base mounted on/off switch. 602E-MT equipped with 2x36" 100 grit belt, all others 2x48" 80 grit belt. Suggested applications Sanding

Overview Premium severe duty motor designed for harsh environments and a low total cost of ownership lifetime operational costs. Sizes 0.75 - 186 kW, 1 - 250 Hp totally enclosed, three phase

Overview DC servo motors have a high inertia skewed rotor for load inertia matching and smooth rotation (no cogging). Sizes 0.2 - 6.3 Nm continuous torque Features Totally enclosed, CE/cURus Multiple feedback types to fit a range of applications Suggested applications X-ray tables, coil winders, labeling equipment, machine tool, robotics, pick and place, packaging

Overview IEC platform - highest power producing DC motor product available. The power dense low profile design makes it easy to displace the competition and integrate into almost any existing application. Sizes 22 - 1305 kW, 30 - 1,751 Hp IEC Features All enclosure types (DPBV,TEDC-AA, TEDC-AW), self monitoring brush wear system, rotatable rocker ring for easy brush change, reduced maintenance design technologies. Suggested applications Pulp and paper processing, extruders, conveyors, test stands, stamping press, crane and hoist, rolling mills, machine tools, ski lift, etc.

Overview V*S master motors provide continuous constant torque performance (1000:1) across the entire speed range from zero speed to base speed. Sizes 0.25 - 372 kW, 1/3 - 500 Hp totally enclosed, three phase

Sizes 0.55 - 15 kW, 3/4 - 20 Hp Suggested applications U-frame mounting dimensions for three-phase and single phase applications

Overview Jet pump motor for residential and industrial applications Sizes 0.18 - 5.6 kW, 0.25 - 7.5 Hp totally enclosed, three phase 0.18 - 5.6 kW, 0.25 - 7.5 Hp open drip proof, three phase 0.09 - 3.7 kW, 0.13 - 5 Hp totally enclosed, single phase 0.09 - 5.6 kW, 0.13 - 7.5 Hp open drip proof, single phase

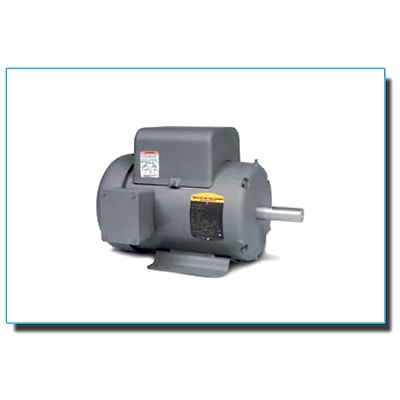

Overview We offer an extensive line of General Purpose single phase open motors. In applications where only single phase power is utilized, these motors are available from 1/12 Hp through 10 Hp in ODP designs. Standard foot mounted configurations are available, as well as C-Face foot mounted and C-Face footless. These are also offered in 1/4 Hp through 5 Hp as Super-E Premium Efficient motors where energy savings is desired. Features Available from 1/12 Hp through 10 Hp in ODP designs Standard foot mounted configurations are available, as well as C-Face foot mounted and C-Face footless Also offered in 1/4 Hp through 3 Hp as Super-E Premium Efficient motors (to meet efficiency requirements for Small Motor Rule) Common Industries Aggregate & Cement Air Handling Chemical, Oil, & Gas Food, Beverage, & Pharmaceutical Paper & Forest Unit & Baggage Handling Common Applications Compressors Pumps Fans Conveyors Material Handling Machine Tool

Overview High torque design C, steel band frame and fan cover Sizes 1.5 - 7.5 kW, 2 - 10 Hp totally enclosed, three phase

Overview Laminated frame design provides more power, reliability and serviceability in a smaller package. A larger armature allows optimum power generation and better ventilation for heat dissipation than standard round frame motors. Sizes 3.7 - 372 kW, 5 - 500 Hp NEMA & IEC Features A variety of enclosure styles are available to meet customer environmental conditions. Suggested applications Mill drives, tube mills, coating lines, winders, printing presses, extruders, mixers, spindle drives

Overview High torque NEMA design A motor that exceeds NEMA design C torques. Sizes 3.7 - 373 kW, 5 - 500 Hp totally enclosed, three phase

Overview NEMA platform --highest power producing DC motor product available. The power dense low profile design makes it easy to displace the competition and integrate into almost any existing application. Sizes 93 - 895 kW, 125 - 1,250 Hp NEMA Features Compensated windings provide linear torque per amp and better commutating during overload conditions. self monitoring brush wear system, rotatable rocker ring for easy brush change, reduced maintenance design technologies Suggested applications Pulp and paper processing, extruders, conveyors, test stands, stamping press, crane and hoist, rolling mills, machine tools, ski lift, etc.

Overview Rolled steel round body frame construction constructed for easy drop in replacement opportunities. Sizes 3.7 - 372 kW, 5 - 500 Hp NEMA Features A variety of thermal protections, speed feedback devices, vibration detection, and non ventilated or ventilated enclosure types. Suggested applications Pulp and paper processing, extruders, conveyors, test stands, stamping press, crane and hoist, machine tools, etc.

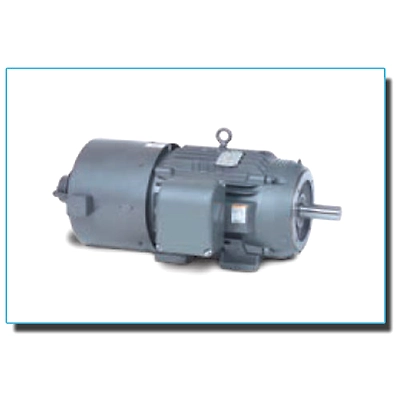

Overview Featuring Dodge short series brakes which are spring set, magnetically released power off type brakes integrally mounted to the motor for the most compact design Sizes 0.37 - 3.7 kW, 1/2 - 5 Hp totally enclosed, three phase Features Single phase brake, inverter ready Suggested applications Conveyors, baggage handling, unit handling, packaging, door operators, elevators, hoists

Overview Industrial polishing lathes Sizes 0.19 - 0.56 kW, 0.25 - 0.75 Hp, single phase Features All lathes are supplied with 8-foot cord with plug, rubber feet and heavy construction to minimize vibration. Provisions for mounting to a laboratory bench are provided. Suggested applications Polishing - dental labs, jewelers, lapidary

Overview Motor that meets and exceeds the requirements of IEEE Std. 841 - 2009 with the exception of using Mobility grease for exceptional roller bearing performance. Sizes 3.7 - 60 kW, 5 - 75 Hp totally enclosed, three phase

Overview Inverter duty motors for open loop control and vector duty motors for closed loop control are available in standard NEMA frame totally enclosed non-vent and blower cooled designs. Sizes 0.25 - 150 kW, 1/3 - 200 Hp totally enclosed, three phase

Overview UL & CSA listed for Class I (gas), Group C & D with a T3C temperature code. Sizes 0.37 - 150 kW, 0.25 - 200 Hp totally enclosed, three phase

Overview Low inertia, high efficient motor with fast action DC brake with an integral rectifier Sizes 0.37 - 2.2 kW, 0.5 - 3 Hp totally enclosed, three phase Features Aluminum frame engineered for increased thermal heat dissipation Suggested applications Frequent start/stop applications, conveyors, baggage handling, unit handling, packaging, door operators, elevators, hoists

Overview Our extensive line of General Purpose three phase open motors are available in cast iron and industrial steel. Designed for ""general purpose"" use means that these motors can be used in many applications. The Super E Motors (EM & CEM) provide NEMA Premium efficiency and are designed as standard to be inverter ready with wide variable torque speed ranges. Features Suitable for mounting in any position Ball bearings Heavy-gauge steel or cast-iron frames, and gasketed conduit boxes EM Super-E motors have NEMA Premium efficiency, Class F insulation, 1.15 service factor and 3 year warranty Motors with TR suffix have roller bearings for heavy belted loads Common Industries Aggregate & Cement Air Handling Chemical, Oil, & Gas Food, Beverage, & Pharmaceutical Paper & Forest Unit & Baggage Handling Common Applications Compressors Pumps Fans Conveyors Material Handling Machine Tool

Overview We offer an extensive line of General Purpose single phase enclosed motors. In applications where only single phase power is utilized, these motors are available from 1/12 Hp through 15 Hp in TEFC designs. Standard foot mounted configurations are available, as well as C-Face foot mounted and C-Face footless. These are also offered in 1/4 Hp through 5 Hp as Super-E Premium Efficient motors where energy savings is desired. Features Are available from 1/12 Hp through 15 Hp in TEFC designs Standard foot mounted configurations are available, as well as C-Face foot mounted and C-Face footless Also offered in 1/4 Hp through 5 Hp as Super-E Premium Efficient motors Common Industries Aggregate & Cement Air Handling Chemical, Oil, & Gas Food, Beverage, & Pharmaceutical Paper & Forest Unit & Baggage Handling Common Applications Compressors Pumps Fans Conveyors Material Handling Machine Tool

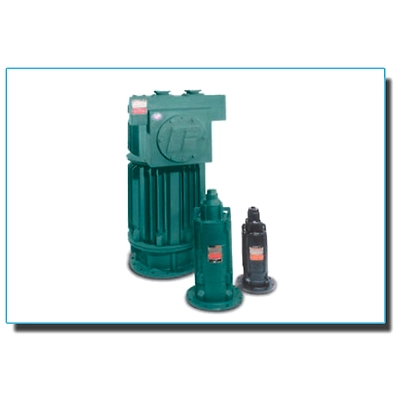

Overview Available for both wet & dry pit applications. Wet pit motors use effluent for cooling and can run 15 minutes in air. Dry pit motors are designed to run continuously in air or submerged when properly applied. Sizes 0.75 - 74.57 kW, 1 - 100 Hp totally enclosed, three phase 0.75 - 3.73 kW, 1 - 5 Hp totally enclosed, single phase

Overview Motors designed for direct drive fan applications Sizes 0.6 - 2.2 kW, 0.75 - 3 Hp totally enclosed, single and three phase

Overview UL & CSA listed for Class I, Group D; Class I, Group C & D; Class I, Group D, Class II, Group F & G. Sizes 0.37 - 150 kW, 0.25 - 200 Hp totally enclosed, three phase

Overview Baldor-Reliance food safe motors, designed with smooth contours and advanced sealing, exceed IP69K for water to maximize motor life in high pressure, sanitary cleaning environments. Sizes 0.37 - 29 kW, 0.5 - 30 Hp, three phase 0.37 - 0.75 kW, 0.5 - 1 Hp, single phase

Overview Innovative, NEMA drop-in replacement motor achieves leading efficiency and lower lifetime operational costs. Sizes 7.5 - 74.5 kW, 10 - 100 Hp totally enclosed - fan cooled, three phase

Overview Motors designed with bonded neodymium magnets and medium inertia rotor for load inertia matching Sizes 1.2 - 134 Nm continuous torque Features 3x continuous torque Totally enclosed, CE/cURus A completely encapsulated winding allows heat to dissipate while protecting internal components from contamination. Multiple feedback types to fit a range of applications Suggested applications Cut-to-length, flying shear, machining, labeling, material handling, winding, robotics

Overview Designed for environments where washdown cleaning occurs. Sizes 0.25 - 15 kW, 0.33 - 20 Hp, single & three phase

Overview Designed as dual rated for either in or out of air stream vane axial fan applications Sizes 1.12 - 11.2 kW, 1.5 - 15 Hp open air over, totally enclosed,single and three phase

Overview Motors designed with high performance neodymium magnets and low inertia rotor for faster acceleration. Sizes 0.4 - 40 Nm continuous torque Features 4x continuous torque Totally enclosed, CE/cURus A completely encapsulated winding allows heat to dissipate while protecting internal components from contamination. Multiple feedback types to fit a range of applications Suggested applications Cut-to-length, flying shear, machining, labeling, material handling, winding, 3D printing, robotics elevators, hoists

Overview The Baldor-Reliance RPM AC direct drive cooling tower motor eliminates the maintenance and failure of mechanical components associated with traditional cooling tower systems by directly coupling the motor to the fan and controlling it with a unique drive. Sizes 5.6 - 186 kW, 7.5 - 250 Hp totally enclosed, three phase

Overview Motors designed and manufactured for normal, medium and high thrust applications. Sizes 1.11 - 56 kW, 1.5 - 75 Hp totally enclosed 1.49 - 45 kW, 2 - 60 Hp open drip proof

Overview Baldor's extensive line of General Purpose three phase motors are available in totally enclosed cast iron and industrial steel band for harsh applications. Designed for ""general purpose"" use means that these motors can be used in many applications. The Super E Motors (EM & CEM) provide NEMA Premium efficiency and are designed as standard to be inverter ready with wide variable torque speed ranges. Features Suitable for mounting in any position Ball bearings Heavy-gauge steel or cast-iron frames, and gasketed conduit boxes EM Super-E motors have NEMA Premium efficiency, Class F insulation, 1.15 service factor and 3 year warranty Motors with TR suffix have roller bearings for heavy belted loads Common Industries Aggregate & Cement Air Handling Chemical, Oil, & Gas Food, Beverage, & Pharmaceutical Paper & Forest Unit & Baggage Handling Common Applications Compressors Pumps Fans Conveyors Material Handling Machine Tool

Sizes 1.1 - 4 kW, 1-1/2 - 5 Hp Suggested applications Specifically designed for operation on pressure washers and steam cleaners

Overview For adjustable speed operation from SCR controls, two designs are available - wound field and permanent magnet. 20:1 constant torque speed range with 90 to 180 VDC armatures. Sizes 0.01 - 2.23 kW, 0.02 - 3 Hp wound field NEMA & IEC 0.18 - 3.73 kW, 0.02 - 5 Hp permanent magnet NEMA & IEC Features Motor construction and features can be tailored for specific applications and industries. Suggested applications Conveyors, extruders, packaging equipment, mixers, winders, printing presses, and metering pumps

Overview HVAC motors designed for wet, high humidity environments Sizes 3.7 - 111 kW, 5 - 150 Hp totally enclosed, three phase

Overview Designed for direct drive centrifugal blower applications with little to no shelter. Sizes 2.2 - 74 kW, 5 - 100 Hp totally enclosed, three phase 3.7 - 22 kW, 5 - 30 Hp open drip proof, three phase 3.7 - 12 kW, 5 - 16 Hp open drip proof, single phase

Overview Innovative, NEMA drop-in replacement motor achieves leading efficiency and lower lifetime operational costs. Sizes 7.5 - 74.5 kW, 10 - 100 Hp totally enclosed - fan cooled, three phase

Sizes 0.37 - 19 kW, 1/2 - 25 Hp Suggested applications Designed for specific applications requiring multi-speed operation. Variety of torque and voltage ratings available.

Sizes 112 - 745 kW, 150 - 1,000 Hp Suggested applications Ammonia refrigeration compressors, particularly in food processing facilities

Overview RPM AC product line provides the ultimate in power density performance in either totally enclosed or open construction. RPM AC motors provide continuous Constant Torque performance (1000:1) from zero speed to base speed. Sizes 1.5 - 900 kW, 2 - 1200 Hp; DPFV, TEFC, TEBC, TEFC, three phase
