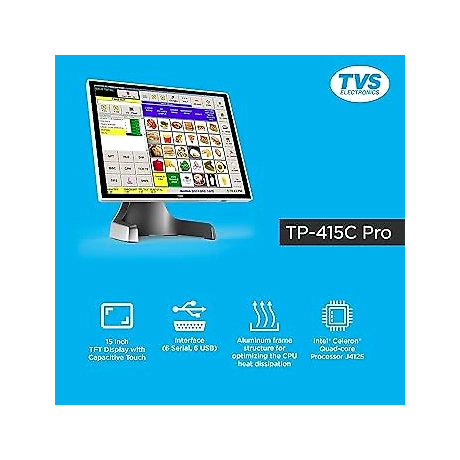

15" TOUCH POS TVS TP415C PRO (WIN)

Processor Intel® CeleronTM Quad-Core J4125

Chipset/BIOS Intel® Gemini Lake SoC / AMI

Storage 2.5" SSD 128GB

Memory 4GB, DDR4 2400MHz x 1 Slot

(Max 16GB, Optional)

Graphics Intel® UHD Graphics 600

Expansion Slot 1 x m.2NVm2,

1 x m.2 WiFi & Bluetooth(Optional)

Supported OS Windows 10 Entry 64bit

3(# of Displays Supported)

- UP to 3 Monitors (Optional)

LCD Display

Type 15” LCD with WLED backlight

Resolution 1024 x 768

Touch True-Flat Capacitive 10 Point Multi-Touch

I/O Interface

Serial

6(DB9 x 3, RJ50(RJ45) x 2, RJ11 x 1)

COM1, 3, 5(DB9): +5V on Pin #9, Selectable by BIOS

COM2, 4 (RJ50, RJ45): Support +5V and 12V for Special Devices and can be used for Kitchen

Printer COM6(RJ11): USB 2.0 and RS232 with +5V/1A for Card Reader

USB 4 x USB 3.0 (2 x Rear Top, 2 x Rear Bottom),

3 x USB 2.0 (Rear Bottom x 2, RJ11 x 1)

LPT(Parallel) 1(LPT / DB25 on Rear Bottom)

Audio 1 x Audio-out / 3.5mm(Changeable for MIC)

Display Port

1 x Display Port(Included 1 x USB 2.0 / Power Delivery +12V)

*Can be used for HDMI and DVI, VGA Monitor by Converter Cable

LAN 1 x RJ45(Base-T 10/100/1000 Ethernet)

Peripheral

Options

2nd Display

9.7" Display

1024 x 768

Customer Display VFD Type (Alphabet & Numeric, 20 Characters x 2 Lines)

Card Reader

(MSR/SCR)

Smart Card Reader: ISO/IEC7816 EMV Level 1

Magnetic Stripe Reader: ISO 7811 ID-1 All Tracks *Interface: USB(HID) and RS232C(COM6)

Dallas Reader Dallas Reader(i-button): 6 Characters/Prefix and Suffix *Interface: USB(HID) and

RS232C(COM6)

Physical

Dimension Dimension(WDHmm)

362mm x 237mm x 336mm

Weight 5.0Kg

Power Supply DC 12V/5A (AC 100V~240V, 60W)

Environment Temperature Operating: 0~50°C at 10% to 90% Humidity

Advance Information*

Introduction

The 15" TOUCH POS TVS TP415C PRO (WIN) is a powerhouse solution designed for efficient and seamless point-of-sale operations. This advanced POS system is tailored for retail, hospitality, and various other commercial environments requiring robust and reliable performance. Equipped with a powerful Intel® Celeron™ Quad-Core J4125 processor, ample storage, exceptional graphics, and versatile connectivity options, it offers a comprehensive package for any business looking to streamline their transactions, manage inventories, and enhance overall operational efficiency.

Processor and Chipset

Performance

At the heart of the 15" TOUCH POS TVS TP415C PRO (WIN) is the Intel® Celeron™ Quad-Core J4125 processor. This processor belongs to Intel's Gemini Lake SoC family and provides an impressive level of performance for handling multiple tasks simultaneously. The quad-core architecture ensures that the POS system can handle everything from simple billing processes to more complex inventory management tasks swiftly and efficiently.

• Clock Speed: The Intel Celeron J4125 operates at base frequency, ensuring fast load times and smooth operation even under heavy workloads.
• Quad-Core: With four cores running concurrently, the system can execute multiple instructions simultaneously, providing multitasking capabilities and better efficiency.

Storage

Reliable and Fast Storage

The POS system features a 2.5" SSD with 128GB of storage, offering a blend of speed and ample storage capacity. SSDs are known for their faster data access times and improved reliability, making them a preferred choice for commercial settings. The solid-state drive ensures rapid boot times, quick data retrieval, and an overall enhanced user experience.

• Capacity: 128GB SSD provides ample space for application software, databases, and backup data.
• Performance: Fast read and write speeds improve overall system performance, ensuring quick access to files and applications.

Memory

Efficient and Expandable

The system comes with 4GB of DDR4 RAM clocked at 2400MHz, which is sufficient for general POS operations. Additionally, the memory can be expanded up to 16GB, making it adaptable for future upgrades and more demanding tasks.

• Current Configuration: 4GB DDR4 RAM ensures smooth and efficient operation.
• Expansion Capability: One memory slot allows users to expand the memory up to 16GB as their business grows.

Graphics

Integrated Graphics

Powered by Intel® UHD Graphics 600, the POS system provides excellent graphical performance. While it is not designed for gaming, the integrated graphics are more than capable of handling point-of-sale applications, displaying high-resolution images, and supporting multiple monitors if needed.

• Graphics Processor: Intel® UHD Graphics 600 ensures crisp and clear visuals.
• Multi-Monitor Support: Capable of supporting up to three monitors, offering flexibility for display setup.

Display

High-Quality LCD Display

The POS system boasts a 15” LCD touchscreen with a WLED backlight. The display offers a resolution of 1024 x 768, providing a clear and bright interface for users. The true-flat capacitive 10-point multi-touch allows for precise and responsive touch interactions, essential in a fast-paced retail environment.

• Screen Size: 15” LCD with WLED backlight provides clear visibility.
• Resolution: 1024 x 768 resolution ensures sharp and detailed visuals.
• Touch Technology: Capacitive 10-point multi-touch for accurate and responsive touch input.

I/O Interface

Comprehensive Connectivity

The 15" TOUCH POS TVS TP415C PRO (WIN) features a wide array of I/O ports, ensuring comprehensive connectivity for various peripherals and devices.

• Serial Ports: 6 (DB9 x 3, RJ50(RJ45) x 2, RJ11 x 1)
  • Special Configuration: COM1, 3, 5 (DB9): +5V on Pin #9, selectable by BIOS
  • Kitchen Printer Support: COM2, 4 (RJ50, RJ45): Support for +5V and 12V
  • Card Reader Support: COM6 (RJ11): USB 2.0 and RS232 with +5V/1A
• USB Ports: 4 x USB 3.0 (2 x Rear Top, 2 x Rear Bottom), 3 x USB 2.0 (Rear Bottom x 2, RJ11 x 1)
• Parallel Port: 1 LPT (DB25 on Rear Bottom)
• Audio Port: 1 x Audio-out/3.5mm (Changeable for MIC)
• Display Port: 1 x Display Port (Includes 1 x USB 2.0 / Power Delivery +12V)
  • Converter Support: Can be used for HDMI, DVI, VGA monitors via converter cable.
• **
