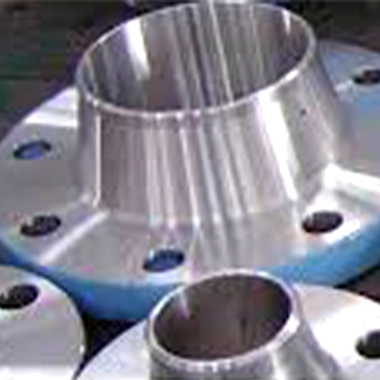

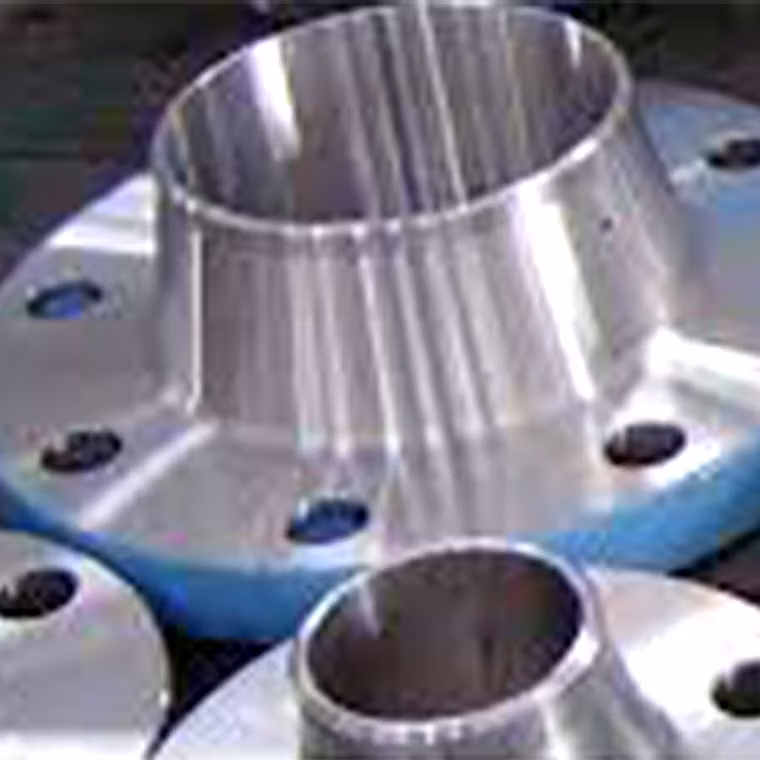

KVN Steels is a distinguished manufacturer of Nickel 200 and 201 flanges, serving a diverse range of industries with high-quality products. Our Nickel 200/201 flanges, made from superior nickel alloy, adhere to strict production standards, ensuring durable and reliable solutions for various applications. Whether you're sourcing slip-on, threaded, weld neck, or blind flanges, our flanges come in multiple specifications, meeting ASTM, ASME, ANSI, EN, DIN, and BS standards. With exceptional mechanical properties, excellent resistance to corrosives, and customized options available, KVN Steels guarantees top-notch quality and service to our clients.
Key Features
| Features | Description |
|---|---|
| Material | Nickel 200/201 Alloy |
| Types Available | Slip-on, threaded, weld neck, socket weld, blind, reducing, lap joint, plate, orifice, forged, RTJ, tongue & groove, nipo, screwed, male & female, raised face, square flanges |
| Applicable Standards | ASTM, ASME, ANSI, EN, DIN, BS |
| Corrosion Resistance | Resistant to several corrosives, especially hydroxides |
| Mechanical Properties | Good mechanical properties at varying temperatures, density of 8.9 g/cm3, melting point of 1446 C |
| Quality Testing | Conducted IGC tests, PMI tests, and chemical tests to ensure quality |
| Applications | Heat exchangers, condensers, petrochemicals, specialty chemicals, automotive, chemical, pulp & paper industries |
| Attributes | Description |
|---|---|
| Chemical Composition | Nickel 200: C 0.15 max, Mn 0.35 max, Si 0.35 max, S 0.01 max, Cu 0.25 max, Fe 0.40 max, Ni 99.0 min; Nickel 201: C 0.02 max, Mn 0.35 max, Si 0.35 max, S 0.01 max, Cu 0.25 max, Fe 0.40 max, Ni 99.0 min |
| Tensile Strength | Nickel 200: 67000 Psi (462 MPa); Nickel 201: 67000 Psi (462 MPa) |
| Yield Strength | Nickel 200: 21500 Psi (148 MPa); Nickel 201: 21500 Psi (148 MPa) |
| Elongation | Both grades: 45% |
| Density | 8.9 g/cm3 |
| Melting Point | 1446 C (2635 F) |
Key Words
*Disclaimer: This above description has been AI generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Brand: KVN
Country of Origin: India
The types of Nickel 200/201 Flanges that our clients can collect from us is slip-on flanges, threaded flanges, weld neck flanges, socket weld flanges, blind flanges, reducing flanges, lap joint flanges, plate flanges, orifice flanges, forged flanges, ring type joint flanges, tongue & groove flanges, nipo flanges, screwed flanges, male & female flanges, raised face flanges and square flanges.
Nickel 200 and 201 alloy is the solid solution strengthened and a commercially pure wrought material that is having very good mechanical properties over different temperatures. Also, it is having very good resistance ability to several corrosives, especially in hydroxides. Nickel 201 is the modification to 200 for controlling the carbon that at the temperature ranging of 600 deg F 1400 deg F keep it being embrittled by the intergranular precipitate.
ASTM B564 Nickel 200 / 201 Blind Flanges Exporter, Alloy ASTM B564 201 Long Weld Neck Flanges, Nickel 200 Ring Type Joint RTJ Flanges, Nickel 200 Flanges, ASTM B564 Nickel 200 / 201 Flanges Supplier, Nickel 200 / 201 Weld Neck Flanges, Nickel 201 Slip on Flanges, Alloy 200 / 201 Flanges Manufacturer in India.
Alloy DIN 2.4068 Spectacle Blind Flanges Dealer, ASTM B564 Nickel 201 SORF Flanges, 200 Nickel Threaded Flanges Stockists, Nickel UNS N02201 Plate Flanges, DIN 2.4066 Pipe Flanges, UNS N02200 Socket Weld Trader, ASME SB564 Nickel 200 / 201 Flanges Supplier in India.
Our manufactured ranges of Nickel 200/201 Flanges are having many good properties to offer and it has become possible because of the effective use of 100% pure Nickel 200/201 alloy for its fabrications. The properties are caustic alkalis resistant, reducing chemical resistance, electrical conductivity, heat resistant, good megnetostrive properties sulfuric and hydrochloric acid resistance.
The applications where Nickel 200/201 Flanges is seen used are heat exchangers, condensers, petrochemicals, specialty chemicals, automotive industry, chemical industry, pulp & paper industry, etc.
Nickel 200/201 Flanges is thoroughly quality tested to make sure that only good quality of product gets dispatched. Therefore the tests done are IGC tests, PMI tests, chemical tests, etc.
Nickel 200 / 201 Flanges Equivalent Grades
| STANDARD | UNS | WNR. | JIS | EN |
| Nickel 200 | N02200 | 2.4066 | NW 2200 | Ni 99.2 |
| Nickel 201 | N02201 | 2.4068 | NW 2201 | LC-Ni 99 |
Chemical Composition of Nickel 200 / 201 Flanges
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Nickel 201 | 0.02 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
Mechanical Properties Of Nickel 200 / 201 Flanges
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 200 | 8.9 g/cm3 | 1446 C (2635 F) | Psi 67000 , MPa 462 | Psi 21500 , MPa 148 | 45 % |
| Nickel 201 | 8.9 g/cm3 | 1446 C (2635 F) | Psi 67000 , MPa 462 | Psi 21500 , MPa 148 | 45 % |
Physical Properties of Nickel 200/201 Flanges
| Density (Kg.m-1) | 84.3 |
| Magnetic Permeability (20C) | <1.005 |
| Curie Temperature (C) | -90 |
| Youngs Modulus (N/mm2) | 179 x 103 |
| Specific Heat, 20C (J.Kg-1.K-1) | 418 |
| Specific Electrical Resistance, 20C (?O.m) | 0.62 |
| Thermal conductivity,20C (W.m-1.K-1) | 17.5 |
| Mean coefficient of thermal expansion, 20-100C (K-1) | 13.4 x 10-6 |
Specification of Nickel 200 / 201 Flanges
Nickel Flanges Specification :ASTM B564 / ASME SB564
Dimension Standard :ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard :ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size :1/2 (15 NB) to 48" (1200NB)
