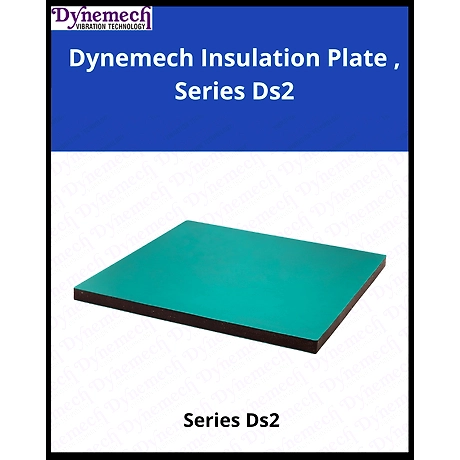

The Dynemech Vibration Damping Pad, Series Ds2, provides superior vibration insulation, making it a vital component for various machinery applications in the industrial sector. Constructed from high-grade synthetic composite materials, this insulation plate is resistant to water, oils, lubricating oils, and fuels commonly found in shop floor environments. Designed for both active and passive vibration control, the Ds2 pad is particularly effective for medium presses, stamping machines, and is well-suited for high-speed rotating machines situated on upper floors. The product features a defined stress value, ensuring that it can be safely installed under machines according to their weight and number of mounting positions. Notably, this pad retains its shape and structural integrity under pressure, remaining plastically undeformed when used within its maximum load capacity. With an ample size of 500x500x25mm, it is capable of bearing load capacities ranging from 2 to 8 kg. The Dynemech Ds2 insulation plate also boasts impressive specifications, including a natural frequency ranging from 8 to 35 Hz, a thickness of 25mm, a coefficient of friction of 0.8, and a shore A hardness rating of 85-90, all contributing to its performance. Ideal for enhancing operational efficiency, the Dynemech Vibration Damping Pad is designed for a working temperature range of -20 to +70°C, and it weighs 9.1 kg. Choose Dynemech for effective vibration dampening solutions that ensure longevity and high performance in your equipment operations.
Key Features
| Features | Description |
|---|---|
| Material | High Grade Synthetic Composite, Nitrile Rubber, Cork, and Synthetic Fibers |
| Size | 500x500x25 mm |
| Load Capacity | 2 to 8 Kg |
| Natural Frequency | 8-35 Hz |
| Thickness | 25 mm |
| Coeff. of Friction | 0.8 |
| Shore A Hardness | 85-90 |
| Working Temperature Range | -20 to +70 °C |
| Weight | 9.1 Kg |
| Color Options | Green, Grey, Black |
| Attributes | Description |
|---|---|
| Material Composition | Nitrile Rubber, Cork, Synthetic Fibers |
| Water Resistance | Yes |
| Oil Resistance | Yes |
| Load Capacity Range (Kg) | 2-8 Kg |
| Vibration Insulation Type | Active and Passive |
| Application | Medium Presses, Stamping Machines, High-Speed Rotating Machines |
| Stress Value Compliance | Defined stress value for specific machine weight and mounting positions |
| Color Options | Green, Grey, Black |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
IEC CODE
IMTMA Membership
ISO
MSMEMART Membership
Dynemech Brand TRADEMARK
Incorporation Type
Company limited by Shares
GST
06AABCD4754E1ZX
Number of Employees
51 To 100 People
Import Export Code (IEC)
05030XXXXX
Year of Establishment
May 2000
Nature of Business
retailer / manufacturer / exporter / importer / manufacturer / manufacturer
GlobalLinker Member Since
October 2022
Annual Turnover: INR 5.00 crore - INR 10.00 crore
Industry: Tools, Machinery & Components > Machinery Components & Supplies
Location(s): Sonipat (India) | Sonipat (India)
DYNEMECH SYSTEMS Pvt. Ltd.was founded in the year 2000 with the aim of manufacturing superior quality vibration damping solutions for all modern machinery. DYNEMECH SYSTEMS Pvt. Ltd. today is one of the leading manufacturers of Anti-Vibration Mounts. We provide complete vibration damping solutions for machinery ranging from CNC machines, Power Presses, Lathe Machines, Textile Machines, Generators, Compressors, Tool Room Machines, Forging Hammers and all other kinds of heavy industrial machinery. We have established ourselves as leading manufacturers, exporters and OEM suppliers of anti vibration pads / mountings.
Brand: DYNEMECH
Country Of Origin: India
Dynemech Anti-vibration Ds2 Insulation Plate is made from high grade synthetic composite material. This sheet is resistant to
water, oils, lubricating oils, fuels, etc. used in shop floor. This sheet has defined stress value and can be placed directly under the
machine as per the weight of the machine and no. of mounting positions. This sheet will not deform plastically, if the weight of
machine does not exceed maximum load value of this insulation plate.
Application:High Vibration Insulation for both active and passive range, Medium Presses, Stamping Machines, also well suited for high speed rotating machines on upper floors.
Dynemech Anti-vibration Ds2 Insulation Plate is made from high grade synthetic composite material. This sheet is resistant to
water, oils, lubricating oils, fuels, etc. used in shop floor. This sheet has defined stress value and can be placed directly under the
machine as per the weight of the machine and no. of mounting positions. This sheet will not deform plastically, if the weight of
machine does not exceed maximum load value of this insulation plate.
Application:High Vibration Insulation for both active and passive range, Medium Presses, Stamping Machines, also well suited for high speed rotating machines on upper floors.
Size :500x500x25mm
Load Capacity (Kg.):02 to 08
Natural Frequency (Hz):08-35
Thickness (mm):25
Coeff. of Friction:0.8
Shore A Hardness:85-90
Working Temp Range °C:-20 to +70
Weight ( Kg.):9.1
Material: Nitrile Rubber, Cork, Synthetic Fibre and Other High Gread Compounds.
Colour:Green, Grey, Black
