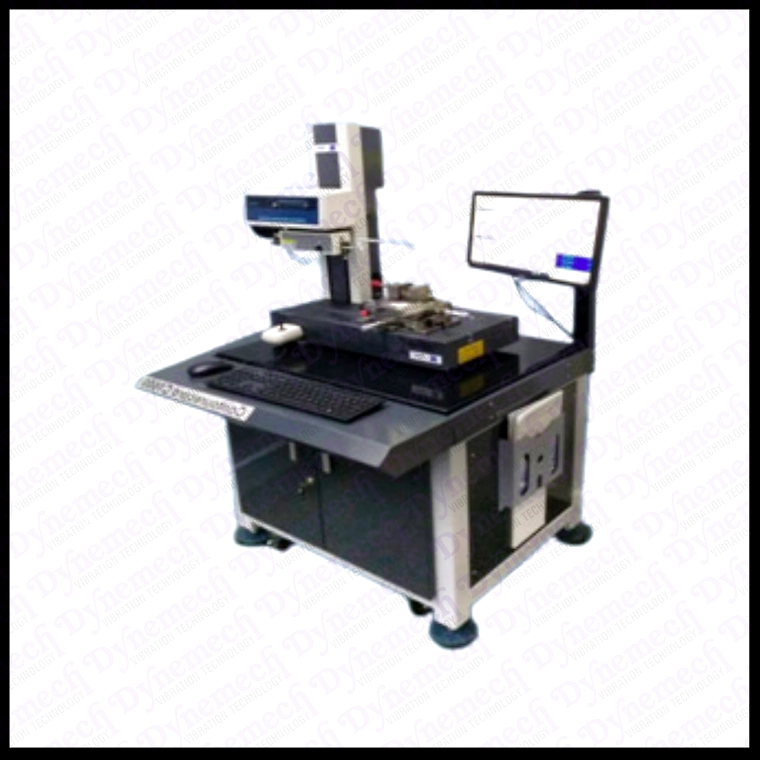

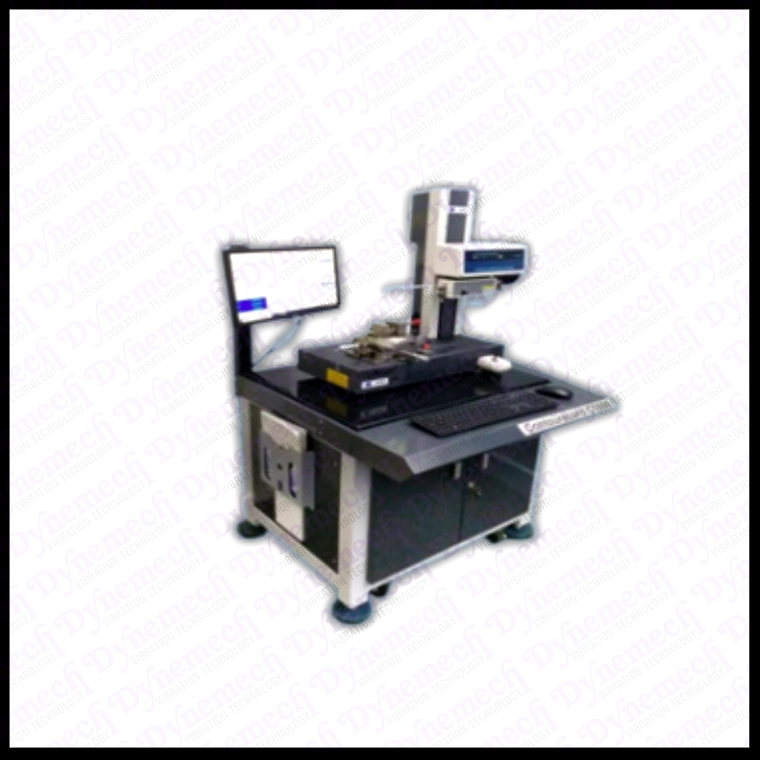

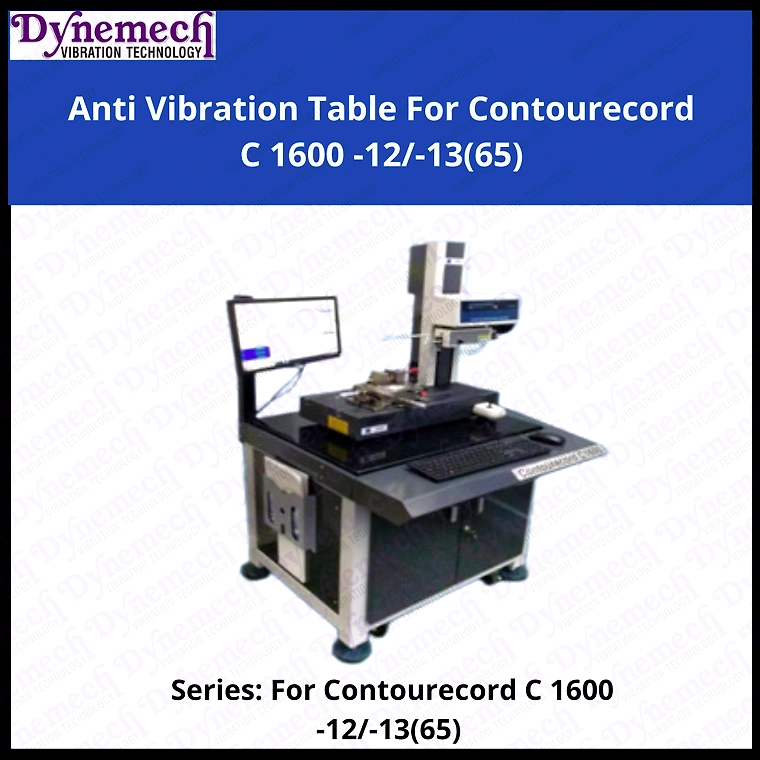

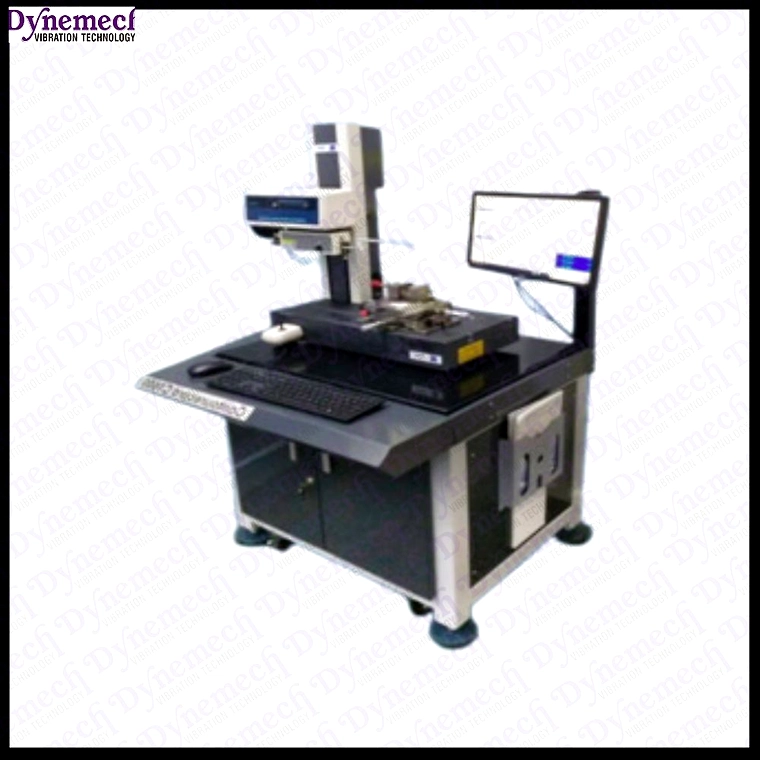

The Economical Anti-Vibration Precision Metrology Table for Contourecord C1600-12/-13, P-65 is meticulously designed to enhance measurement accuracy in environments plagued with vibrations from industrial machinery such as presses and hammers. Crafted with a granite surface plate that boasts Grade-1 accuracy, this table becomes indispensable for testing and quality control laboratories that require meticulous precision. With its specially engineered DLP3 high-density footings and vibration damping features located strategically under the granite tabletop and at the bottom of the structure, it ensures minimal distortion and distortion-free sampling. Options for Elastomeric, Pneumatic, or Spring-Based damping systems make it versatile for various operational needs of testing laboratories. Featuring a sturdy tubular structure and practical design elements such as a front keyboard panel for computers and a swiveling monitor bracket, this anti-vibration table is the cornerstone of effective analytical operations, combining reliability, functionality, and exceptional performance.
Key Features
| Features | Description |
|---|---|
| Granite Surface Plate | Size L-750 mm, B-600 mm, T-30 mm with Grade-1 accuracy |
| Heavy-Duty Construction | 60x60 mm HR tubular structure with robust support |
| Vibration Damping System | Options for Elastomeric, Pneumatic, or Spring Based Damping |
| Leveling Feet | Allows for precise leveling and stability |
| DLP3 Footings | 4 pieces at ground level for enhanced durability |
| Mobility | Equipped with 3-inch wheels for easy movement |
| Keyboard Panel | Front keyboard panel for secure computer device placement |
| Monitor Bracket | Left-hand rear monitor bracket with swivel and tilt capability |
| Color Finish | Structure in RAL 9002, side sheet and keyboard panel in Graphite Grey |
| Attributes | Description |
|---|---|
| Weight Capacity | Up to 1000 kg |
| Damping System Types | Elastomeric, Pneumatic, Spring Based |
| Base Size | Granite top with dimensions 750mm x 600mm |
| Overall Structure Dimensions | Dimensions may vary based on configuration |
| Insulation Plate | Included to minimize external vibrations |
| Wheels | 4 nos – 3 inches diameter for mobility |
| Pad Number | 8 nos AV pads between structure and granite base |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
IEC CODE
IMTMA Membership
ISO
MSMEMART Membership
Dynemech Brand TRADEMARK
Incorporation Type
Company limited by Shares
GST
06AABCD4754E1ZX
Number of Employees
51 To 100 People
Import Export Code (IEC)
05030XXXXX
Year of Establishment
May 2000
Nature of Business
retailer / manufacturer / exporter / importer / manufacturer / manufacturer
GlobalLinker Member Since
October 2022
Annual Turnover: INR 5.00 crore - INR 10.00 crore
Industry: Tools, Machinery & Components > Machinery Components & Supplies
Location(s): Sonipat (India) | Sonipat (India)
DYNEMECH SYSTEMS Pvt. Ltd.was founded in the year 2000 with the aim of manufacturing superior quality vibration damping solutions for all modern machinery. DYNEMECH SYSTEMS Pvt. Ltd. today is one of the leading manufacturers of Anti-Vibration Mounts. We provide complete vibration damping solutions for machinery ranging from CNC machines, Power Presses, Lathe Machines, Textile Machines, Generators, Compressors, Tool Room Machines, Forging Hammers and all other kinds of heavy industrial machinery. We have established ourselves as leading manufacturers, exporters and OEM suppliers of anti vibration pads / mountings.
Brand: DYNEMECH
Country Of Origin: India
Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.
Granite base of size: L-750 B-600 T-30 mm
60x60 mm HR tubular structure
4 nos DLP3 at ground level, 4 nos - 3” wheel 8 nos AV pad between structure and granite base Front keyboard panel provided for placing keyboard & mouse over the surface Monitor Bracket on L.H Rear with swivelling and tilting fecility Structure- RAL 9002, Side sheet, door & Key board panel- Graphite Grey.
Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.
Our Anti-Vibration Tables are designed with Granite Surface Plate with Grade-1 accuracy for critical measuring accuracies. Also, vibration damping in our Anti-Vibration tables are provided at two locations – below the granite table top and at the bottom usinglevelling feet which can help in proper levelling of the table as well as having insulation plate to remove any unwanted vibrations. Additionally, we can select Elastomeric, Pneumatic or Spring Based Damping depending upon the vibrations present in the Testing Laboratory.
Granite base of size: L-750 B-600 T-30 mm
60x60 mm HR tubular structure
4 nos DLP3 at ground level, 4 nos - 3” wheel 8 nos AV pad between structure and granite base Front keyboard panel provided for placing keyboard & mouse over the surface Monitor Bracket on L.H Rear with swivelling and tilting fecility Structure- RAL 9002, Side sheet, door & Key board panel- Graphite Grey.
